Removal [10/2017 - 10/2020]: Procedure

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 2

1. except Sport Package

   Refer to REMOVAL [10/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]

2. for Sport Package

   Refer to REMOVAL [10/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]

Refer to PROCEDURE - Step 8 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 8 [09/2018 - 10/2020]

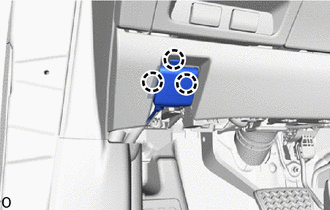

1. Detach the claw and remove the hood lock control lever sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the hood lock control lever sub-assembly from the hood lock control cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

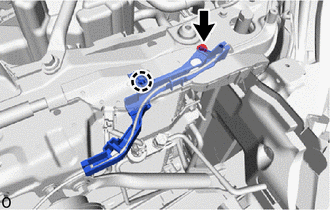

1. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Detach the claw and remove the hood lock control cable cover LH.
3. Disconnect the hood lock control assembly.

   Refer to PROCEDURE - Step 8 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 8 [09/2018 - 10/2020]

4. Pull out the hood lock control cable assembly and hood lock control assembly from the hood lock control cable cover LH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

1. Tie a string to the end of the hood lock control cable assembly in the cabin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   String

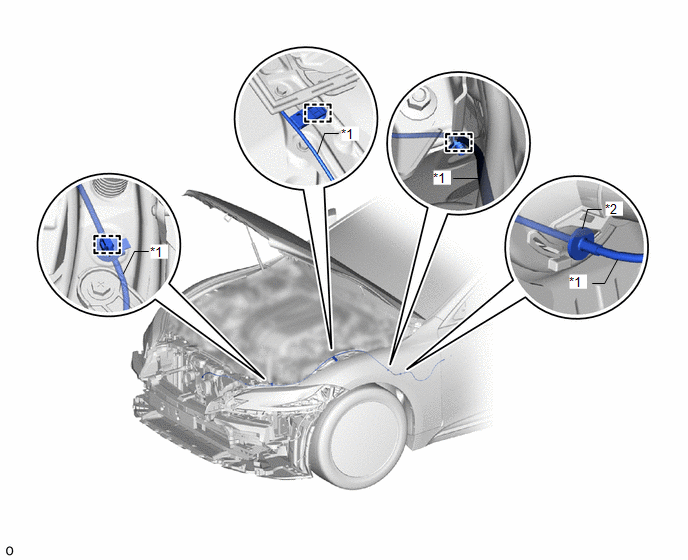

2. Using a screwdriver with its tip wrapped with protective tape, detach the clamps and remove the hood lock control cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   Hood Lock Control Cable Assembly

   *2

   Stopper

3. Pull the hood lock control cable assembly into the engine room.

   HINT:

   Do not pull off the string, because it is used during installation. Leave it on the vehicle.

4. Disconnect the string from the hood lock control cable assembly.
