Adjustment [10/2017 - ]: Procedure

INSPECT FRONT DOOR PANEL SUB-ASSEMBLY LH

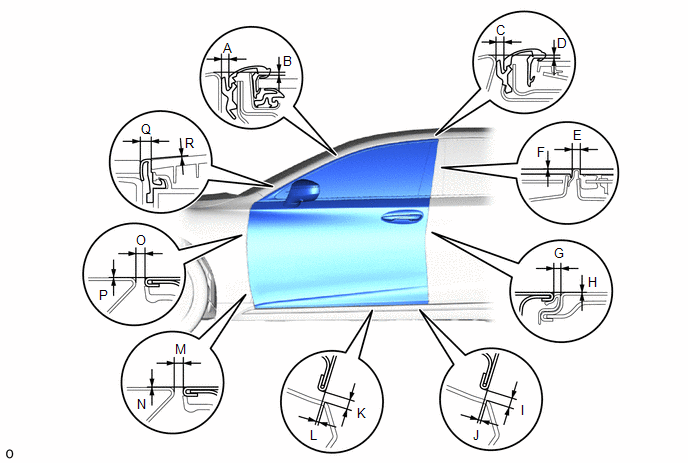

Check that the clearance measurements of areas A to R are within the standard ranges.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Clearance

Area	Measurement	Area	Measurement
A	2.65 to 6.05 mm (0.104 to 0.238 in.)	B	0.15 to 4.15 mm (0.006 to 0.163 in.)
B	2.65 to 6.05 mm (0.104 to 0.238 in.)	D	0.25 to 4.25 mm (0.010 to 0.167 in.)
E	3.2 to 7.2 mm (0.126 to 0.283 in.)	F	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
G	3.3 to 5.7 mm (0.130 to 0.224 in.)	H	-1.2 to 1.2 mm (-0.047 to 0.047 in.)
I	3.15 to 7.15 mm (0.124 to 0.281 in.)	J	0.55 to 4.55 mm (0.022 to 0.179 in.)
K	3.15 to 7.15 mm (0.124 to 0.281 in.)	L	0.15 to 4.15 mm (0.006 to 0.163 in.)
M	2.7 to 5.7 mm (0.106 to 0.224 in.)	N	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
O	2.7 to 5.7 mm (0.106 to 0.224 in.)	P	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
Q	2.85 to 5.25 mm (0.112 to 0.207 in.)	R	-0.85 to 1.15 mm (-0.033 to 0.045 in.)

ADJUST FRONT DOOR PANEL SUB-ASSEMBLY LH

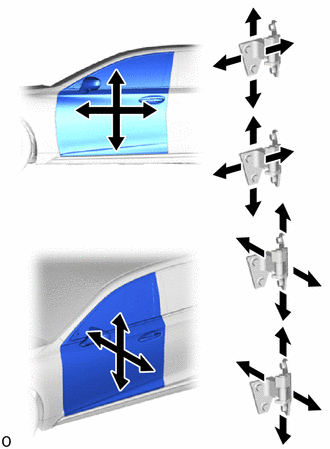

Using SST, loosen the hinge bolts on the body and adjust the door position.

SST: 09812-00010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the hinge bolts on the body after the adjustment.
Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)
Loosen the hinge bolts on the door and adjust the door position.
Tighten the hinge bolts on the door after the adjustment.
Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

Detach the claw and remove the door lock striker cover.

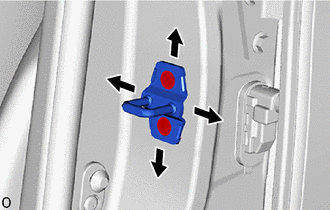

Using a T40 "TORX" socket wrench, adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.

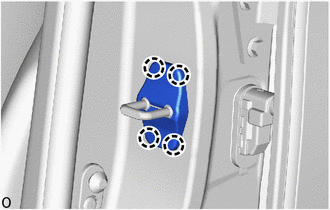

Using a T40 "TORX" socket wrench, tighten the striker mounting screws after the adjustment.
Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)
Attach the claw to install the door lock striker cover.
