System Diagram [10/2023 - ]

  1. w/ Front LiDAR Sensor:

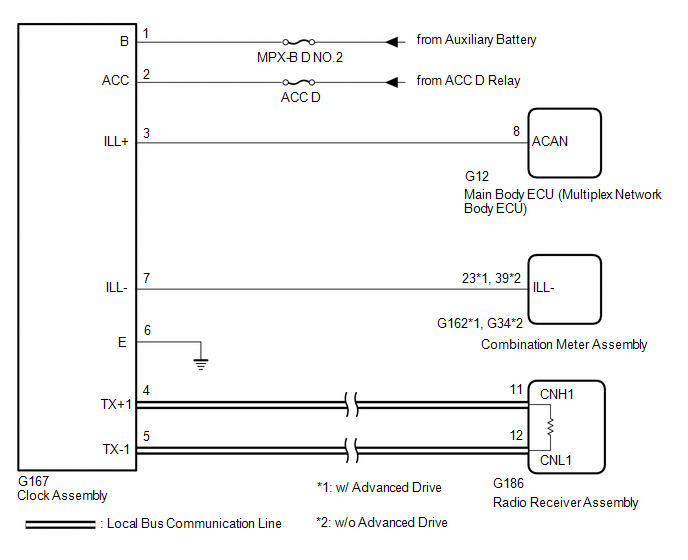

    Fig 1: W/ Front Lidar Sensor System Diagram [10/2023 - ]
    GTY1122601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Front LiDAR Sensor:
    Fig 2: W/O Front Lidar Sensor System Diagram [10/2023 - ]
    GTY1229676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
