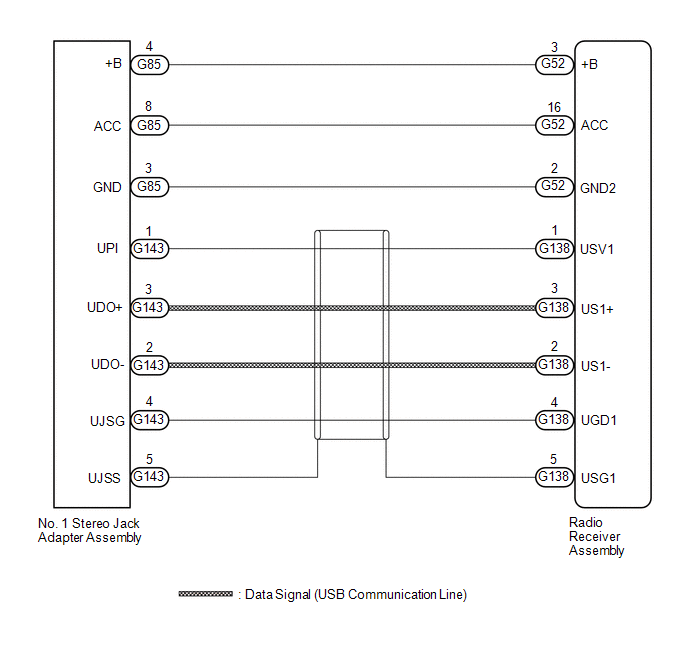

USB Audio System Recognition/Play Error [10/2017 - 10/2020]: Wiring Diagram

GTY820862

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
