Removal [10/2017 - 10/2020]: Procedure

DRAIN BRAKE FLUID
NOTE:
If brake fluid leaks onto any painted surface, immediately wash it off.
DISCONNECT BRAKE BOOSTER PUMP CONNECTOR
Refer to PROCEDURE - Step 3 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 3 [09/2018 - 10/2020]
REMOVE FRONT WHEEL
Refer to REMOVAL [10/2017 - 10/2023]

REMOVE FRONT DISC BRAKE PAD

WARNING:

Be careful not to get pinched by the disc brake cylinder assembly or other parts when removing the front disc brake pads.

NOTE:

Be sure to inspect the front disc when replacing the front disc brake pads with new ones.

for RH side:

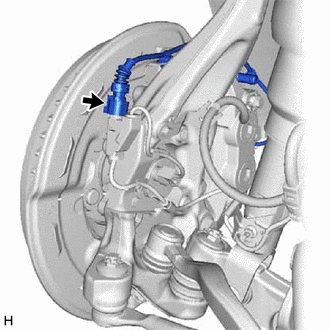

Disconnect the front pad wear indicator wire connector assembly RH from the front skid control sensor wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

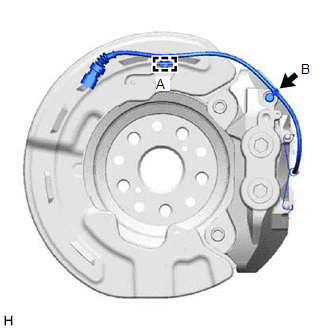

Disconnect the clamp (A) from the front disc brake dust cover RH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

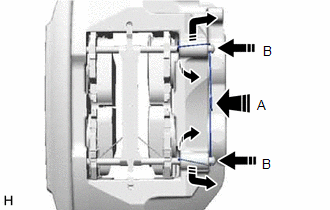

While pressing the area (A), push the hole pin (B) toward the disk brake cylinder assembly LH, and remove the pin hold clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

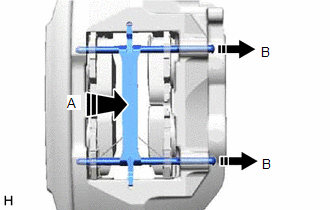

While pressing the area (A), remove the 2 hole pins (B) and No. 1 anti-rattle spring.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

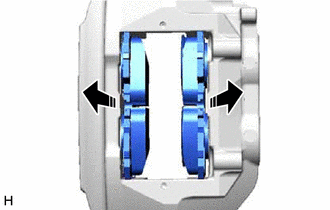

Remove the 2 front disc brake pads from the disk brake cylinder assembly LH.

for RH side:

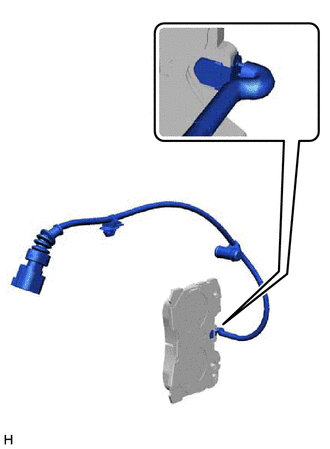

Detach the pad wear indicator retainer and remove the pad wear indicator wire assembly RH from the front disc brake pad.

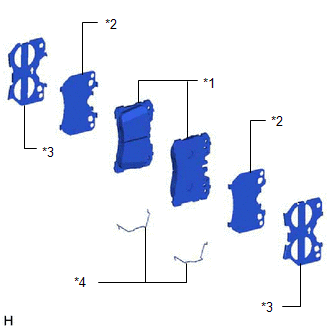

REMOVE FRONT DISC BRAKE ANTI-SQUEAL SHIM

Remove the No. 1 and No. 2 anti-squeal shims from each of the front disc brake pads.
