DTC B1321-87: Lost Communication with EMV Missing Message [10/2020 - 10/2022]: Wiring Diagram

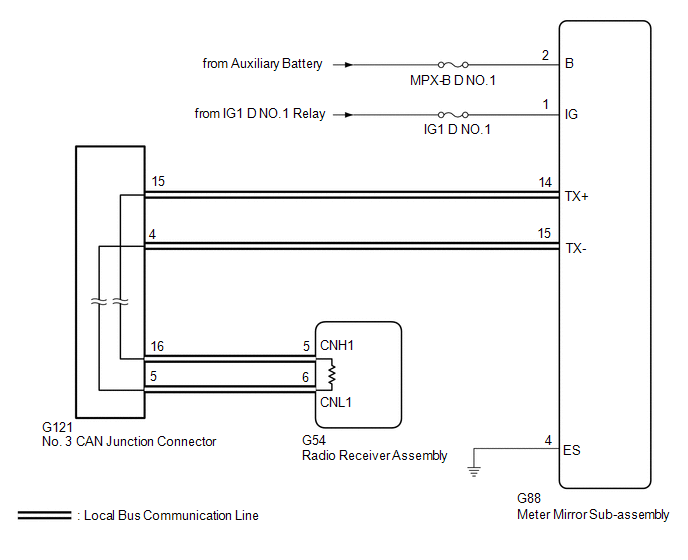

Fig 1: DTC B1321-87: Lost Communication with EMV Missing Message [10/2020 - 10/2022]
GTY969943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
