HEADUP Display System
>>
DTC B1321-87: Lost Communication with EMV Missing Message [10/2017 - 10/2020]
>>
Wiring Diagram
DTC B1321-87: Lost Communication with EMV Missing Message [10/2017 - 10/2020]: Wiring Diagram

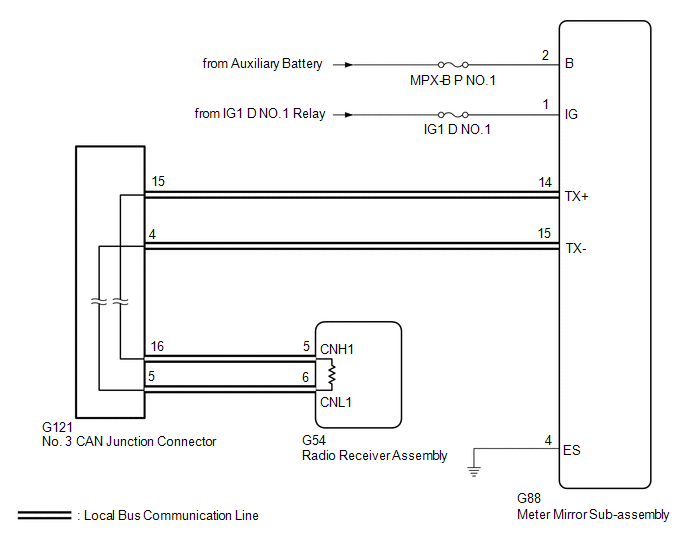

Fig 1: DTC B1321-87: Lost Communication with EMV Missing Message [10/2017 - 10/2020]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
