Installation [12/2017 - ]: Procedure

1. Attach the claws and clamp to install the No. 2 sub-radiator duct to the No. 1 sub-radiator bracket.

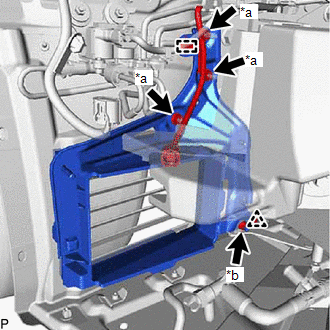

2. Install the No. 3 radiator bracket with the 3 nuts A.

   Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Nut A
   *b	Nut B

3. Attach the clamp.
4. Install the nut B and clip.

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

5. Install the sub radiator assembly with the 3 nuts.

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

6. Connect the No. 1 sub-radiator hose and No. 6 sub-radiator hose to the sub radiator assembly, and slide the clips to secure the hose.
   NOTE:

   • Make sure the No. 1 sub-radiator hose and No. 6 sub-radiator hose is securely inserted to the stopper.
   • Install the clip so that it faces the bottom of the vehicle from the No. 1 sub-radiator hose and No. 6 sub-radiator hose.
7. Attach the claw to install the No. 1 sub-radiator duct.
8. Install the 2 bolts.

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

9. Install the front bumper assembly.
   • for Sport Package: (Refer to INSTALLATION [12/2017 - 10/2020] , or refer to INSTALLATION [10/2020 - 11/2021] , or refer to INSTALLATION [11/2021 - 10/2023] , or refer to INSTALLATION [10/2023 - ] )
   • except Sport Package: (Refer to INSTALLATION [12/2017 - 10/2020] , or refer to INSTALLATION [10/2020 - 11/2021] , or refer to INSTALLATION [11/2021 - 10/2023] , or refer to INSTALLATION [10/2023 - ] )

1. Attach the guides and claws to install the intercooler cooling radiator assembly to the radiator assembly.
2. Connect the intercooler water hose assembly, and slide the clips to secure the hose to the intercooler cooling radiator assembly.
   NOTE:

   • Install so that the intercooler water hose assembly paint mark and intercooler cooling radiator assembly positioning stopper are securely overlapped. (Rotational Direction)
   • Make sure the intercooler water hose assembly is securely inserted to the stopper. (Axial Direction)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	View A	*b	90°
   *c	Paint Mark	*d	Lower Side
   *e	RH Side	*f	Rotational Direction
   *g	OK	*h	NG
   *i	Variation Range	*j	Axis Direction
   *k	Stopper	*l	2 to 7 mm (0.0787 to 0.276 in.)

3. Install the intercooler water hose assembly with the 2 bolts.

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Attach the clamp.
5. Attach the claw and install the rear radiator side air guide plate LH to the radiator assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Install the radiator assembly.

   Refer to INSTALLATION [12/2017 - ]

Refer to PROCEDURE - Step 5

Refer to PROCEDURE - Step 9
