Removal [12/2017 - ]: Procedure

  1. REMOVE ENGINE ASSEMBLY WITH TRANSMISSION (for 2WD)

    Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

  2. REMOVE ENGINE ASSEMBLY WITH TRANSMISSION (for AWD)

    Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

  3. REMOVE AIR FUEL RATIO SENSOR

    Refer to REMOVAL [12/2017 - ]

  4. REMOVE NO. 4 TURBO INSULATOR

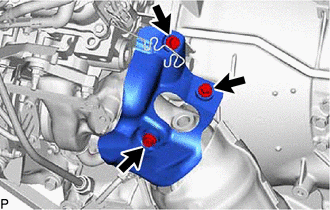

    1. Remove the 3 bolts and No. 4 turbo insulator.
      GTY818398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 TURBO INSULATOR

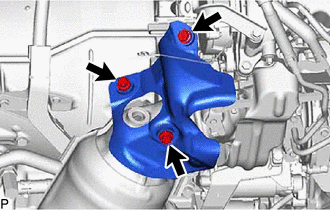

    1. Remove the 3 bolts and No. 2 turbo insulator.
      GTY818393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CONVERTER ASSEMBLY LH
    1. for 2WD:
      GTY836779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

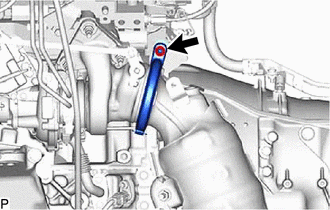

      1. Loosen the exhaust pipe clamp LH.

        HINT:

        Move the exhaust pipe clamp LH to the converter assembly LH side.

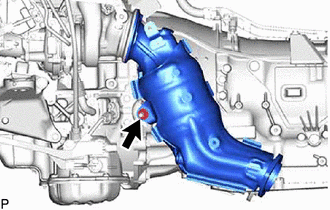

      2. Remove the nut and converter assembly LH.
        GTY818392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the gasket.
    2. for AWD:
      GTY836779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Loosen the exhaust pipe clamp LH.

        HINT:

        Move the exhaust pipe clamp LH to the converter assembly LH side.

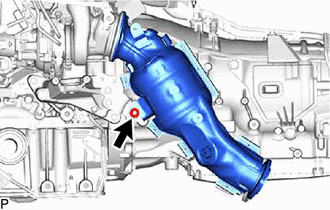

      2. Remove the nut and converter assembly LH.
        GTY818391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the gasket.
  7. REMOVE NO. 2 MANIFOLD STAY
    1. for 2WD:

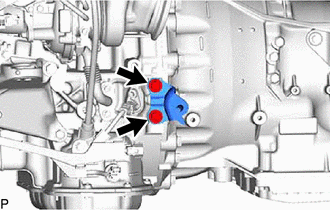

      GTY818389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and No. 2 manifold stay.
    2. for AWD:

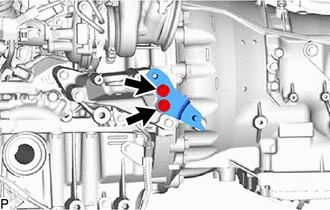

      GTY818396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and No. 2 manifold stay.
  8. REMOVE CONVERTER ASSEMBLY RH
    1. for 2WD:

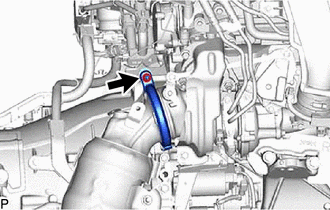

      GTY818489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Loosen the exhaust pipe clamp RH.

        HINT:

        Move the exhaust pipe clamp RH to the converter assembly RH side.

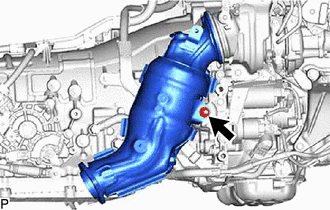

      2. Remove the nut and converter assembly RH.
        GTY818487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the gasket.
    2. for AWD:
      GTY818488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

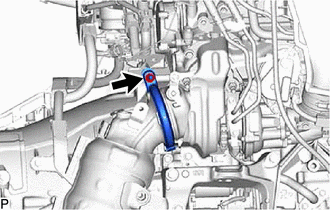

      1. Loosen the exhaust pipe clamp RH.

        HINT:

        Move the exhaust pipe clamp RH to the converter assembly RH side.

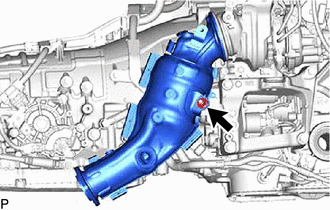

      2. Remove the nut and converter assembly RH.
        GTY818486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the gasket.
  9. REMOVE MANIFOLD STAY
    1. for 2WD:

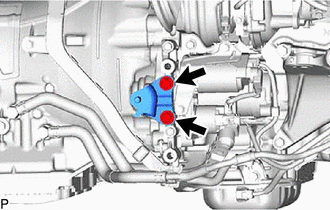

      GTY818492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and manifold stay.
    2. for AWD:

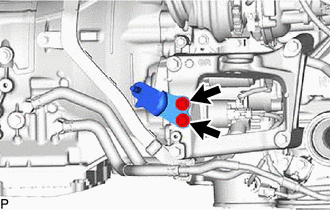

      GTY818491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and manifold stay.
