Installation [10/2020 - 10/2023]: Procedure

  1. INSTALL HEADUP DISPLAY

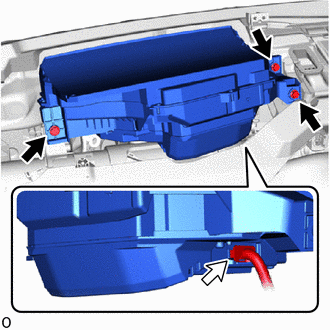

    1. GTY782845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector

      Connect the connector.

    2. Install the headup display with the 3 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  2. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [10/2020 - 10/2022] , or refer to INSTALLATION [10/2022 - 10/2023]

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  4. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  5. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

    Refer to WORK PROCEDURE [10/2020 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - 10/2023]

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [10/2020 - 10/2023]

  6. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [12/2017 - 10/2023]

  7. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [12/2017 - 11/2021] , or refer to OPERATION CHECK [11/2021 - 10/2023]
