Removal [09/2018 - 10/2020]: Procedure

  1. DRAIN DIFFERENTIAL OIL

    Refer to PROCEDURE - Step 2

  2. REMOVE ENGINE ASSEMBLY

    Refer to REMOVAL [09/2018 - 10/2020]

  3. REMOVE PROPELLER SHAFT HEAT INSULATOR

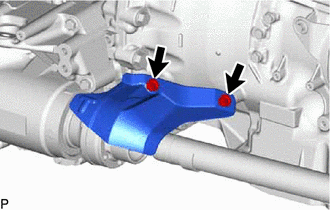

    1. Remove the 2 bolts and propeller shaft heat insulator.
      GTY821927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT DIFFERENTIAL CARRIER ASSEMBLY
    1. Support the front differential carrier assembly with a jack.
      WARNING:

      As the front differential carrier assembly is very heavy, securely support it with the jack.

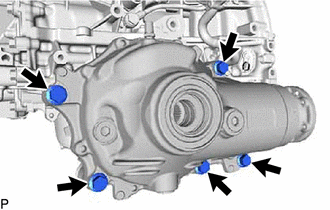

    2. GTY815118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 5 bolts and front differential carrier assembly.

      NOTE:
      • Do not damage the installation surface when removing the front differential carrier assembly.
      • The remaining oil may leak out when removing the front differential carrier assembly.
