Adjustment [12/2017 - 10/2020]: Procedure

INSPECT FITTING OF HOOD SUB-ASSEMBLY

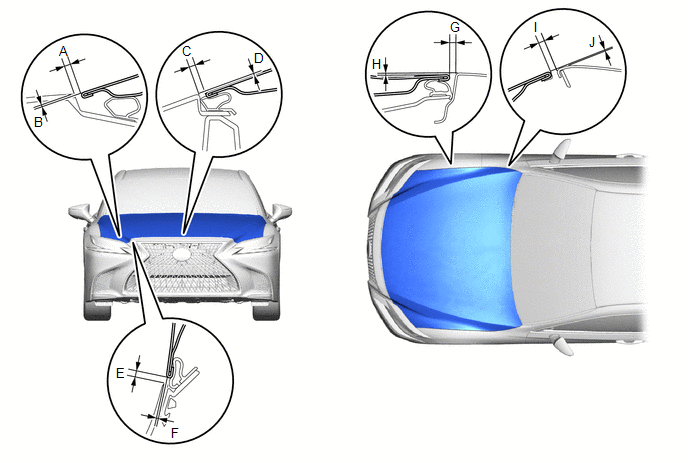

Check that the all fitting dimensions are within the reference value ranges.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Clearance

Area	Specified Condition	Area	Specified Condition
A	1.85 to 5.85 mm (0.073 to 0.230 in.)	B	-0.65 to 3.35 mm (-0.026 to 0.132 in.)
C	2.25 to 5.25 mm (0.089 to 0.207 in.)	D	-1.35 to 1.65 mm (-0.053 to 0.065 in.)
E	2.15 to 5.15 mm (0.085 to 0.203 in.)	F	-0.45 to 2.55 mm (-0.018 to 0.100 in.)
G	2.2 to 5.2 mm (0.087 to 0.205 in.)	H	-1.3 to 1.7 mm (-0.051 to 0.067 in.)
I	2.5 to 5.5 mm (0.098 to 0.217 in.)	J	-1.4 to 1.6 mm (-0.055 to 0.063 in.)

ADJUST HOOD SUB-ASSEMBLY

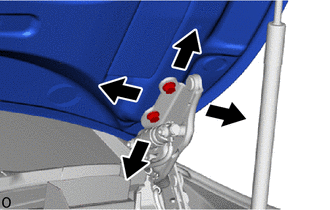

Adjustment in longitudinal direction of hood and horizontal direction of hood rear end.

Loosen the hood hinge assembly bolts and adjust.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

NOTE:

Replace the bolts with the supplied bolts before performing adjustment, as centering bolts are used.

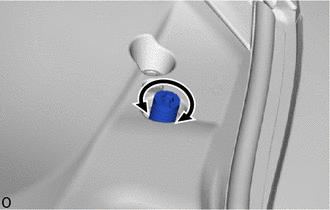

Adjustment in vertical direction of hood front left and right ends.

Turn the cushion to adjust.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the front bumper cover.
1. except Sport Package
  Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]
2. for Sport Package
  Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]
Remove the hood lock release lever protector.
See step 8

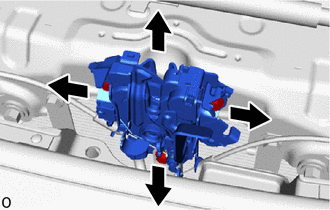

Adjustment in vertical and horizontal directions of hood front end.

Loosen the 3 bolts and adjust.

Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

NOTE:

Replace the bolts with the supplied bolts before performing adjustment, as centering bolts are used.

Install the hood lock release lever protector.
See step 4
Install the front bumper cover.
1. except Sport Package
  Refer to INSTALLATION [12/2017 - 10/2020]
2. for Sport Package
  Refer to INSTALLATION [12/2017 - 10/2020]
