Installation [10/2023 - ]: Procedure

  1. INSTALL HEADLIGHT ASSEMBLY LH

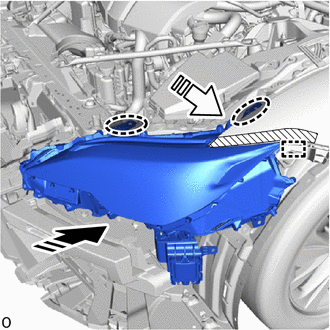

    1. Set the headlight assembly LH to the vehicle.
      GTY1234734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Install in this Direction (1)
      Install in this Direction (2)
    2. Place your hand on 2 brackets of the headlight assembly LH to set them on the screw seats.
      NOTE:

      Be careful not to break the bracket.

    3. w/ Front Side Radar:

      Connect the connector and attach the wire harness clamp.

    4. Place your hand on 2 brackets of the headlight assembly LH to set them on the screw seats.
      NOTE:

      Be careful not to break the bracket.

    5. Install the headlight assembly LH in installation direction (1) as shown in the illustration.
    6. Slide the headlight assembly LH in installation direction (2) and attach the guide.
    7. Install the headlight assembly LH with the 2 bolts and 3 screws.

      Bolt

      Torque: 7.5 N.m (76 kgf/cm,

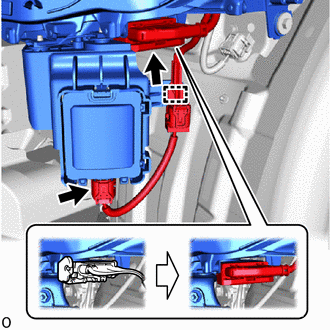

    8. Connect the connector and lock the connector lock lever.
      GTY1230650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Connect the connector and attach the wire harness clamp.
  2. INSTALL FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP LH
    1. Set the front fender reinforcement sub-assembly top LH and attach the clip.
      GTY811270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Headlight Assembly LH Clip Installation Area
      NOTE:

      When attaching the headlight assembly LH to the clips, do not damage the clip installation area.

    2. Lower the rear end of the front fender reinforcement sub-assembly top LH and attach the hook toward the outside of the vehicle.
      GTY793283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Lower Attach the hook
    3. Attach the claw of the hood to cowl top seal.
      GTY811946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Lower the end of the front fender reinforcement sub-assembly top LH and attach the hook toward the outside of the vehicle.
      GTY971992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Lower Attach the hook
  3. INSTALL FRONT BUMPER ASSEMBLY

    except Sport Package:

    Refer to INSTALLATION [10/2023 - ]

    for Sport Package:

    Refer to INSTALLATION [10/2023 - ]

  4. PERFORM INITIALIZATION

    Refer to REGISTRATION [10/2023 - ]

  5. ADJUST HEADLIGHT AIMING

    Refer to ADJUSTMENT [10/2020 - ]
