Installation [10/2020 - 10/2023]: Procedure

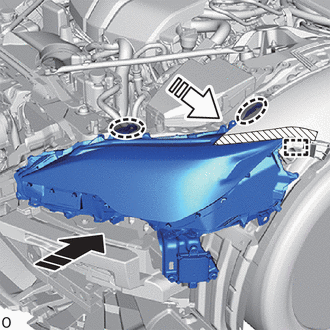

1. Set the headlight assembly LH to the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hands Here
   	Install in this Direction (1)
   	Install in this Direction (2)

2. Place your hand on 2 brackets of the headlight assembly LH to set them on the screw seats.
   NOTE:

   Be careful not to break the bracket.

3. w/ Front Side Radar:

   Connect the connector and attach the wire harness clamp.

4. Place your hand on 2 brackets of the headlight assembly LH to set them on the screw seats.
   NOTE:

   Be careful not to break the bracket.

5. Install the headlight assembly LH in installation direction (1) as shown in the illustration.
6. Slide the headlight assembly LH in installation direction (2) and attach the guide.
7. Install the headlight assembly LH with the 2 bolts and 3 screws.

   Bolt

   Torque: 7.5 N.m (76 kgf/cm,

8. Connect the connector and lock the connector lock lever.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Front Side Radar

1. Set the front fender reinforcement sub-assembly top LH and attach the clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Headlight Assembly LH Clip Installation Area

   NOTE:

   When attaching the headlight assembly LH to the clips, do not damage the clip installation area.

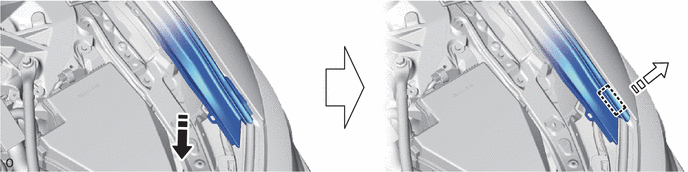

2. Lower the rear end of the front fender reinforcement sub-assembly top LH and attach the hook toward the outside of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lower

   Attach the hook

3. Attach the claw of the hood to cowl top seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Lower the end of the front fender reinforcement sub-assembly top LH and attach the hook toward the outside of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lower

   Attach the hook

except Sport Package:

Refer to INSTALLATION [10/2020 - 11/2021] , or refer to INSTALLATION [11/2021 - 10/2023]

for Sport Package:

Refer to INSTALLATION [10/2020 - 11/2021] , or refer to INSTALLATION [11/2021 - 10/2023]

Refer to REGISTRATION [10/2020 - 10/2023]

Refer to ADJUSTMENT [10/2020 - ]
