Components [12/2017 - 10/2023]

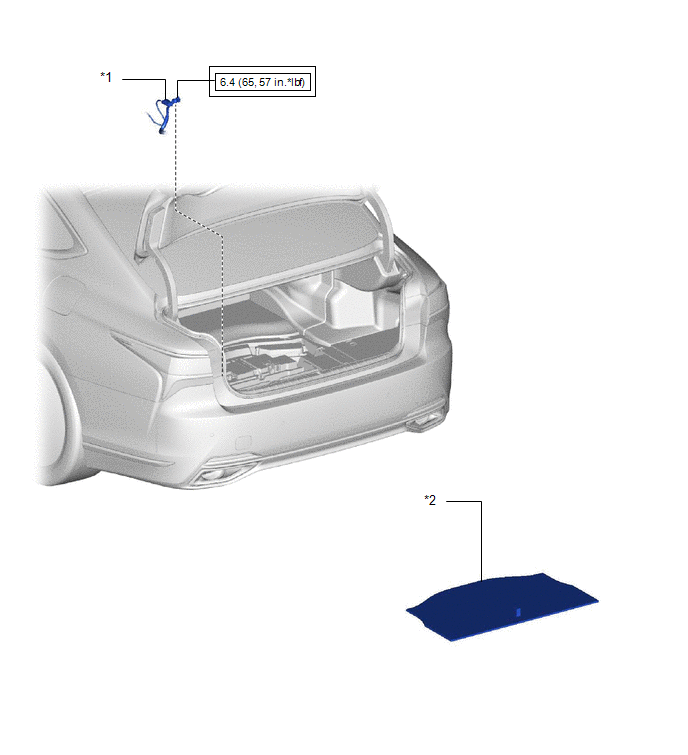

Fig 1: Headup Display Replacement Components With Torque Specifications [12/2017 - 10/2023] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NEGATIVE BATTERY TERMINAL	*2	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

Fig 2: Headup Display Replacement Components With Torque Specifications [12/2017 - 10/2023] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADUP DISPLAY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 3: Headup Display Replacement Components [12/2017 - 10/2023] (3 Of 3)

NO. 1 COMBINATION METER MIRROR PLATE
