Removal [05/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [05/2023 - ]

  2. DISCONNECT BRAKE BOOSTER PUMP CONNECTOR
    1. With the power switch off, disconnect the 2 brake booster pump connectors.
      GTY827554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. PERFORM ACCUMULATOR PRESSURE ZERO DOWN
    1. Drain the brake fluid in the brake master cylinder reservoir assembly to near the MIN line.
      GTY811813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a MIN Line
    2. Connect the Techstream to the DLC3 with the power switch off.
    3. Check that the parking brake is applied, and turn the power switch on (IG).
    4. Turn the Techstream on and enter the following menus: Chassis / ABS/VSC/TRAC / Utility / ECB (Electronically Controlled Brake System) Utility / Zero Down.

      Chassis > ABS/VSC/TRAC > Utility

      Tester Display
      ECB Utility

      HINT:

      Using the Techstream to perform accumulator pressure zero down causes the pressurized brake fluid in the accumulator to be returned to the brake master cylinder reservoir assembly.

    5. When the buzzer sounds, turn the power switch off.
    6. Turn the Techstream off and disconnect the Techstream from the DLC3.
  4. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  5. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [05/2023 - ]

  6. REMOVE FRONT APRON FENDER INSULATOR LH

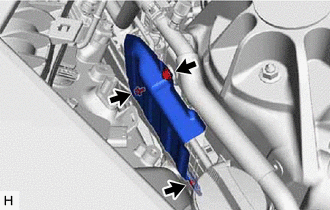

    1. GTY818084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 bolts and front apron fender insulator LH.

  7. REMOVE FENDER APRON BRACE SUB-ASSEMBLY LH
    1. Disconnect the No. 2 fuel tube sub-assembly.

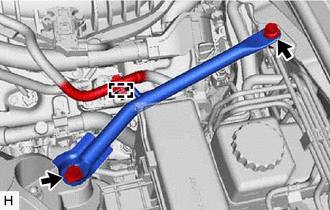

      GTY832307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and fender apron brace sub-assembly LH.
  8. DISCONNECT RELAY BLOCK
    1. GTY822113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 3 claws and remove the No. 2 relay block cover.

    2. Remove the bolt.
      GTY822109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 2 claws and disconnect the wiring harness protector.
    4. Remove the 2 bolts, nut and disconnect the relay block.
      GTY815552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the bolt and wire harness clamp bracket.
      GTY815551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Detach the 9 claws and remove the relay block lower cover.
      GTY822108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Move the relay block as shown in the illustration to create a clearance.
      GTY837586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT WIRE HARNESS
    1. Release the lock lever and disconnect the brake actuator connector from the brake actuator assembly.
      GTY836608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Lock Lever Released
      Connector Disconnected
    2. Detach the 2 clips from the brake actuator bracket assembly.
  10. DISCONNECT BRAKE TUBE
    1. Use tags or make a memo to identify the places to reconnect the brake lines.
      GTY791212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a From Brake Stroke Simulator Cylinder Sub-assembly
      *b From Brake Master Cylinder Sub-assembly
      *c To Rear Wheel Cylinder Assembly RH
      *d To Rear Wheel Cylinder Assembly LH
      *e To Front Wheel Cylinder Assembly RH
    2. Using a union nut wrench, disconnect the 10 brake tube flare nuts.
      GTY775000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not kink or damage the brake tube.
      • Do not allow any foreign matter such as dirt or dust to enter the brake tube from the connecting parts.
    3. Remove the bolt and disconnect the No. 2 brake actuator tube clamp.
      GTY827253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE BRAKE TUBE
    1. Detach the claws and disconnect the 3 upper side brake tubes from the clamp.
      GTY775002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 lower side brake tubes with the clamp attached.
      GTY775004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the claws and disconnect the 3 brake tubes from the clamp.
      GTY775005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE BRAKE ACTUATOR WITH BRACKET
    1. Slide the clip and disconnect the brake actuator hose from the brake master cylinder reservoir assembly.
      GTY774837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, 2 nuts and brake actuator with bracket.
      NOTE:
      • Do not kink or damage the brake tubes.
      • Do not hold the brake actuator with bracket by the connector, hose or union.
      • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.
  13. REMOVE BRAKE ACTUATOR HOSE
    1. Slide the clip and disconnect the brake actuator hose from the brake actuator assembly.
      GTY774838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 3 BRAKE ACTUATOR TUBE
    1. Using a union nut wrench, disconnect the No. 3 brake actuator tube from the brake actuator assembly.
      GTY827218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not kink or damage the No. 3 brake actuator tube.
      • Do not allow any foreign matter such as dirt or dust to enter the No. 3 brake actuator tube from the connecting parts.
  15. REMOVE NO. 1 BRAKE ACTUATOR WAY
    1. Remove the 2 bolts and No. 1 brake actuator way from the brake actuator assembly.
      GTY774839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 BRAKE ACTUATOR BRACKET
    1. Remove the 3 nuts and No. 2 brake actuator bracket from the brake actuator assembly.
      GTY774840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 brake actuator bracket spacers from the brake actuator bracket cushion.
      GTY774841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 brake actuator bracket cushions from the No. 2 brake actuator bracket.
  17. REMOVE NO. 1 BRAKE ACTUATOR BRACKET
    1. Remove the 3 bolts and No. 1 brake actuator bracket from the brake actuator assembly.
      GTY774853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 3 BRAKE ACTUATOR BRACKET
    1. Remove the 4 bolts and No. 3 brake actuator bracket from the body.
      GTY774854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
