Installation [03/2017 - 06/2019]: Procedure

  1. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Using a vernier caliper and straightedge, measure the dimension A between the automatic transmission assembly contact surface of the engine assembly and the torque converter clutch assembly contact surface of the drive plate.

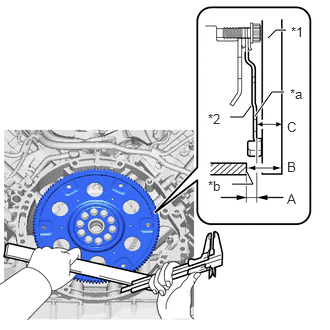

      GTY820847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Straightedge
      *2 Drive Plate
      *a Torque converter clutch assembly contact surface of the drive plate
      *b Automatic transmission assembly contact surface of the engine assembly

      Measurement Method

      B - C = A

    2. Using a screwdriver with its tip wrapped with protective tape, align the oil pump drive sprocket so that it is perpendicular as shown in the illustration.
      GTY782003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Protrusion of the Oil Pump Drive Sprocket
      NOTE:

      Do not damage the front oil pump cover seal.

      HINT:

      Tape the screwdriver tip before use.

    3. Align the cutout on the torque converter clutch assembly with the protrusion on the oil pump drive sprocket and attach the spline on the input shaft to the spline on the turbine liner.
      GTY776265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout
      *b Protrusion of the Oil Pump Drive Sprocket
      NOTE:
      • Install the torque converter clutch assembly to the input shaft while keeping it horizontal.
      • Do not damage the front oil pump cover seal.
      • Make sure the cutout on the torque converter clutch assembly and the protrusion on the oil pump drive sprocket are properly aligned.
    4. Using a vernier caliper and straightedge, measure the dimension D shown in the illustration and check that the dimension D is more than the dimension A, which was measured in the previous step.

      Standard

      Dimension D = Dimension A + 1.0 mm (0.0394 in.) or more

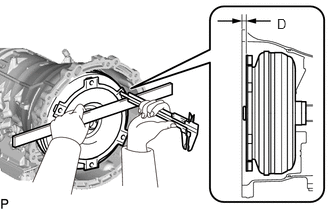

      GTY818220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Check that the torque converter clutch assembly rotates smoothly.

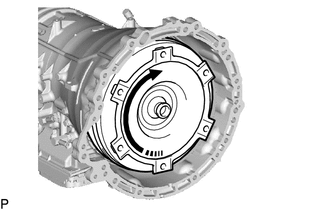

      GTY789226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
    1. Confirm that the 2 knock pins are installed to the engine assembly and are not damaged.
      GTY825755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Make sure that the matchmark is positioned as shown in the illustration.
      GTY783076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    3. Apply clutch spline grease to the surface the crankshaft that contacts the torque converter clutch assembly centerpiece.
      GTY787977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Drive Plate
      *2 Crankshaft
      *a Torque Converter Clutch Assembly Centerpiece
      Clutch Spline Grease

      Clutch Spline Grease

      Toyota Genuine Clutch Spline Grease or equivalent

      Maximum Grease Amount

      Approximately 1 g (0.0353 oz.)

    4. While keeping the engine assembly and automatic transmission assembly horizontal, align the 2 knock pins with the holes in the automatic transmission assembly and install the automatic transmission assembly with the 10 bolts.

      for bolt A

      Torque: 71 N.m (724 kgf/cm, 52 ft.lbf)

      for bolt B

      Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)

      GTY792414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt A
      Bolt B
      NOTE:
      • Do not use excessive force when installing the automatic transmission assembly.
      • When mounting the automatic transmission assembly to the engine assembly, make sure to securely fit the 2 knock pins into the knock holes.
      • When tightening the bolts, make sure that the contact surfaces of the engine assembly and the automatic transmission assembly are in close contact with one another.
      • When installing the automatic transmission assembly, make sure that the oil cooler tube does not become damaged.
      • Check that the torque converter clutch assembly rotates smoothly after installation of the automatic transmission assembly.

      HINT:

      Item Length
      Bolt A 50 mm (1.97 in.)
      Bolt B 43 mm (1.69 in.)
  3. INSTALL DRIVE PLATE AND TORQUE CONVERTER CLUTCH SETTING BOLT
    1. Turn the crankshaft to gain access to the installation locations of the 6 drive plate and torque converter clutch assembly setting bolts and install each bolt while holding the crankshaft pulley with a wrench.

      Torque: 48 N.m (489 kgf/cm, 35 ft.lbf)

      GTY825778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      First install the black colored bolt, and then the remaining 5 silver colored bolts.

  4. INSTALL REAR ENGINE MOUNTING INSULATOR
    1. Install the rear engine mounting insulator to the automatic transmission assembly with the 4 bolts.
      GTY825776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 34 N.m (347 kgf/cm, 25 ft.lbf)

  5. INSTALL ENGINE REAR MOUNTING MEMBER
    1. Install the engine rear mounting member to the automatic transmission assembly with the 3 nuts.

      Torque: 34 N.m (347 kgf/cm, 25 ft.lbf)

      GTY825777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the throttle link connecting rod assembly to the shift control actuator assembly with the nut, spring washer and 2 bolts.
      GTY818665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut and Spring Washer

      for bolt

      Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

      for nut

      Torque: 12.7 N.m (130 kgf/cm, 9 ft.lbf)

  6. INSTALL OIL COOLER TUBE WITH OIL COOLER HOSE
    1. Temporarily install the oil cooler tube with the 3 bolts.
      GTY801655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 2.0 to 7.0 mm (0.0787 to 0.276 in.) *b Permissible range for paint mark position
      *c Paint Mark - -
    2. Tighten the 3 bolts

      Torque: 22 N.m (224 kgf/cm, 16 ft.lbf)

    3. Connect the 2 oil cooler hoses to the automatic transmission assembly and slide the 2 hose clips to secure the hoses.
      NOTE:

      Adjust the oil cooler hose paint marks so that they are within the range shown in the illustration.

  7. INSTALL FLYWHEEL HOUSING SIDE COVER

    Refer to PROCEDURE - Step 1

  8. INSTALL STARTER ASSEMBLY

    Refer to PROCEDURE - Step 2

  9. INSTALL NO. 3 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 3

  10. CONNECT WIRE HARNESS
    1. Connect the wire harness to the automatic transmission assembly with the 4 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

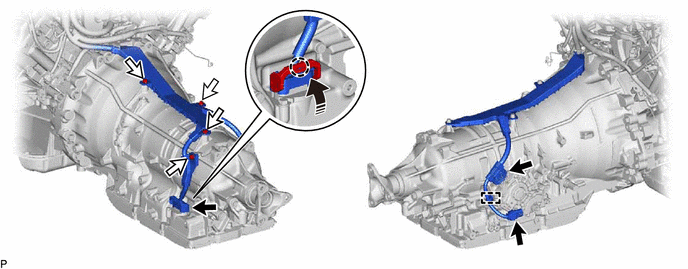

      GTY838129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Wire Harness Connector Bolt
      Push Up Lever - -
    2. Connect the 2 wire harness connectors and wire harness clamp.
    3. Connect the transmission wire connector.
      NOTE:

      Push up the lever until the claw of the transmission wire connector makes a connection sound.

  11. INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
    1. Install the No. 1 exhaust pipe support bracket sub-assembly with the 2 bolts.

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

      GTY825775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL EXHAUST MANIFOLD

    Refer to INSTALLATION [03/2017 - ]

  13. RESET MEMORY

    Refer to INITIALIZATION [03/2017 - ]

  14. CATALYST DETERIORATION CONFIRMATION DRIVING PATTERN

    Refer to CONFIRMATION DRIVING PATTERN

    HINT:

    Proceed to "CONFIRMATION DRIVING PATTERN".

  15. ATF THERMAL DEGRADATION ESTIMATE RESET
    NOTE:

    Approximately 50% or more of the ATF has been replaced during a repair of the transmission or a similar operation.

    Refer to INITIALIZATION [03/2017 - ]
