Removal [09/2023 - ]: Procedure

  1. REMOVE REAR FLOOR SIDE MEMBER COVER LH
    1. w/o Front Suspension Member Brace:

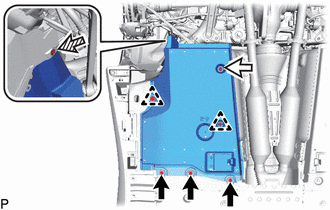

      1. GTY1241832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Nut
        Screw

        Remove the 2 clips, 3 bolts, nut, screw and rear floor side member cover LH.

    2. w/ Front Suspension Member Brace:
      1. Remove the 3 clips, 3 bolts, nut, screw, plate washer and rear floor side member cover LH.

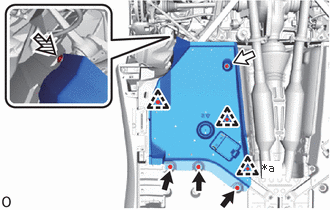

        GTY1242456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Nut
        Screw
        *a Clip and Plate Washer
  2. REMOVE REAR FLOOR SIDE MEMBER COVER RH
    1. w/o Front Suspension Member Brace:
      1. Remove the 2 clips, 3 bolts, nut, screw and rear floor side member cover RH.

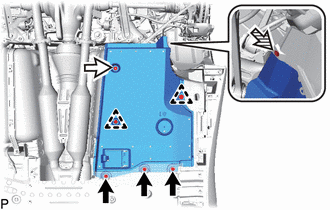

        GTY1241794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Nut
        Screw
    2. w/ Front Suspension Member Brace:
      1. Remove the 3 clips, 3 bolts, nut, screw, plate washer and rear floor side member cover RH.

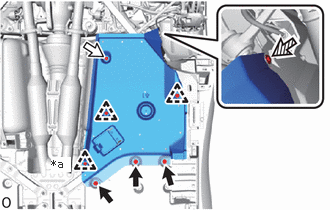

        GTY1242463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Nut
        Screw
        *a Clip and Plate Washer
  3. REMOVE FRONT FENDER SEAL LH
    1. w/o Front Suspension Member Brace:

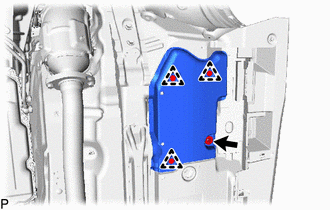

      1. GTY1241725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Grommet

        Remove the 3 clips, 3 plate washers, grommet and front fender seal LH.

    2. w/ Front Suspension Member Brace:
      1. GTY947539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Grommet

        Remove the 4 clips, 4 plate washers, grommet and front fender seal LH.

  4. REMOVE FRONT FENDER SEAL RH
    1. w/o Front Suspension Member Brace:

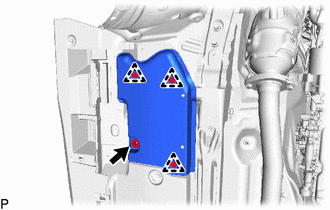

      1. GTY1241826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Grommet

        Remove the 3 clips, 3 plate washers, grommet and front fender seal RH.

    2. w/ Front Suspension Member Brace:
      1. GTY947920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Grommet

        Remove the 4 clips, 4 plate washers, grommet and front fender seal RH.

  5. REMOVE FRONT FLOOR COVER LH
    1. w/o Front Suspension Member Brace:

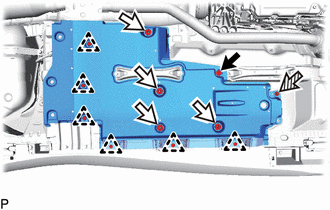

      1. GTY1241727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Grommet
        Nut

        Remove the 4 grommets, 6 clips, nut, bolt and front floor cover LH.

    2. w/ Front Suspension Member Brace:

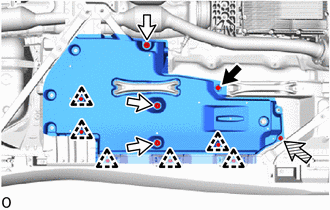

      1. GTY1242387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Grommet
        Nut

        Remove the 3 grommets, 6 clips, nut, bolt and front floor cover LH.

  6. REMOVE FRONT FLOOR COVER RH
    1. w/o Front Suspension Member Brace:

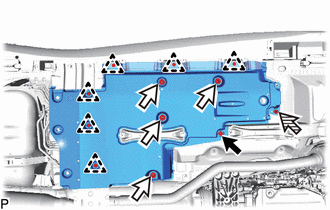

      1. GTY1241729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Grommet
        Nut

        Remove the 4 grommets, 6 clips, nut, bolt and front floor cover RH.

    2. w/ Front Suspension Member Brace:

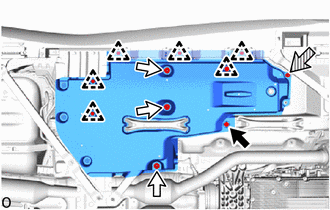

      1. GTY1242180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Grommet
        Nut

        Remove the 3 grommets, 6 clips, nut, bolt and front floor cover RH.

  7. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [05/2023 - ]

  8. DISCONNECT HEATED OXYGEN SENSOR CONNECTOR

    Refer to PROCEDURE - Step 8

  9. REMOVE HEATED OXYGEN SENSOR (for Bank 1)

    Refer to PROCEDURE - Step 9

  10. REMOVE HEATED OXYGEN SENSOR (for Bank 2)

    Refer to PROCEDURE - Step 10

  11. REMOVE FRONT NO. 1 FLOOR CROSS BRACE LH (w/ Front Suspension Member Brace)
    1. Remove the 2 bolts, nut and front No. 1 floor cross brace LH.
      GTY947219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  12. REMOVE FRONT NO. 1 FLOOR CROSS BRACE RH (w/ Front Suspension Member Brace)
    1. Remove the 2 bolts, nut and front No. 1 floor cross brace RH.
      GTY947482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  13. REMOVE FRONT CENTER FLOOR BRACE SUB-ASSEMBLY
    1. Remove the 12 bolts and front center floor brace sub-assembly.
      GTY819183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR
    1. Remove the 3 nuts and No. 2 differential support protector.
      GTY819223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 1 DIFFERENTIAL SUPPORT PROTECTOR
    1. Remove the 3 nuts and No. 1 differential support protector.
      GTY819221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR NO. 4 BUMPER SIDE SUPPORT LH
    1. Remove the 2 screws, 2 clips, grommet and rear No. 4 bumper side support LH.
      GTY819182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR NO. 4 BUMPER SIDE SUPPORT RH
    1. Remove the 2 screws, 2 clips, grommet and rear No. 4 bumper side support RH.
      GTY819181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    1. Remove the 4 bolts and 4 nuts to disconnect the front exhasut pipe assembly from the exhaust manifold sub-assembly LH and exhaust manifold sub-assembly RH.
      GTY818642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts, 4 nuts and front exhaust pipe assembly from the exhaust tailpipe assembly.
      GTY947923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 gaskets.
  19. REMOVE EXHAUST TAILPIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. for Type A:

      Detach the 2 clamps and disconnect the 4 connectors.

      GTY818636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Type B:

      Detach the 2 clamps and disconnect the 2 connectors.

      GTY1084852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 6 exhaust pipe supports and exhaust tailpipe assembly.
      GTY818637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE EXHAUST PIPE GAS CONTROL ACTUATOR SUB-ASSEMBLY
    1. for Type A:
      GTY1084528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for RH Side
      *B for LH Side
      1. Remove the 6 bolts and 4 nuts.
      2. Remove the 2 exhaust pipe gas control actuator sub-assemblies from the exhaust tailpipe assembly.
    2. for Type B:
      GTY1084646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for RH Side
      *B for LH Side
      1. Remove the 6 bolts and 4 nuts.
      2. Remove the 2 exhaust pipe gas control actuator sub-assemblies from the exhaust tailpipe assembly.
