Installation [03/2017 - 09/2023]: Procedure

  1. INSTALL EXHAUST PIPE GAS CONTROL ACTUATOR SUB-ASSEMBLY
    1. for Type A (New article):

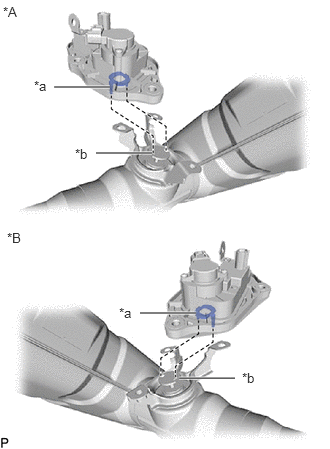

      1. Align the joint of the exhaust pipe gas control actuator sub-assembly with the valve plate of the exhaust tailpipe assembly as shown in the illustration.
        GTY818741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for RH Side
        *B for LH Side
        *a Joint
        *b Valve Plate
      2. Install the 2 exhaust pipe gas control actuator sub-assemblies with the 6 bolts and 4 nuts.

        Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    2. for Type A (Reuse):

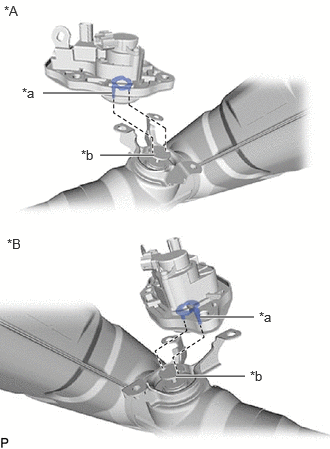

      1. Align the joint of the exhaust pipe gas control actuator sub-assembly with the valve plate of the exhaust tailpipe assembly as shown in the illustration.
        GTY1084736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for RH Side
        *B for LH Side
        *a Joint
        *b Valve Plate

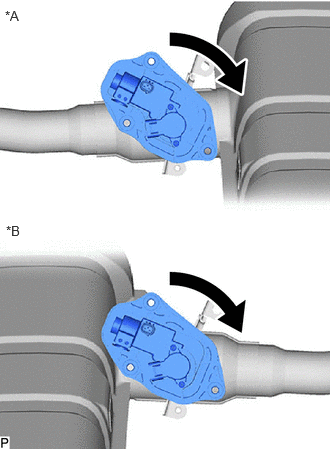

      2. Turn the exhaust pipe gas control actuator sub-assembly as shown in the illustration.
        GTY1084660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for RH Side
        *B for LH Side
      3. Install the 2 exhaust pipe gas control actuator sub-assemblies with the 6 bolts and 4 nuts.

        Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

        NOTE:

        Install the same parts to their original positions.

    3. for Type B (New article):

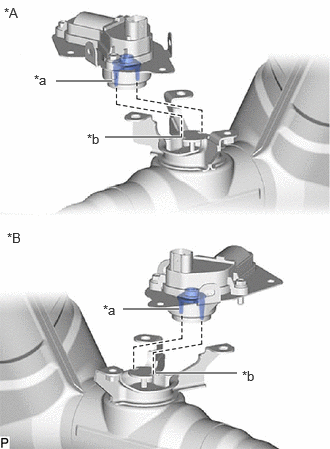

      1. Align the joint of the exhaust pipe gas control actuator sub-assembly with the valve plate of the exhaust tailpipe assembly as shown in the illustration.
        GTY1084637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for RH Side
        *B for LH Side
        *a Joint
        *b Valve Plate
      2. Install the 2 exhaust pipe gas control actuator sub-assemblies with the 6 bolts and 4 nuts.

        Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    4. for Type B (Reuse):

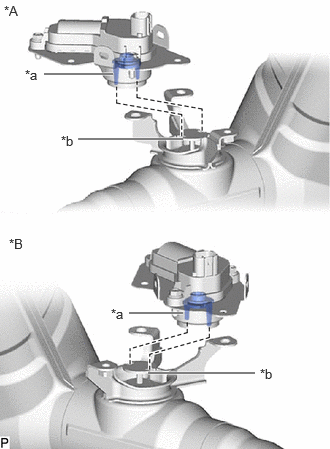

      1. Align the joint of the exhaust pipe gas control actuator sub-assembly with the valve plate of the exhaust tailpipe assembly as shown in the illustration.
        GTY1084598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for RH Side
        *B for LH Side
        *a Joint
        *b Valve Plate

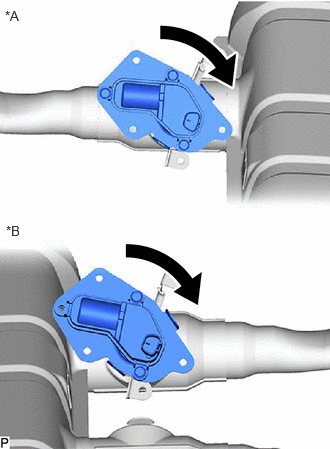

      2. Turn the exhaust pipe gas control actuator sub-assembly as shown in the illustration.
        GTY1084578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for RH Side
        *B for LH Side
      3. Install the 2 exhaust pipe gas control actuator sub-assemblies with the 6 bolts and 4 nuts.

        Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

        NOTE:

        Install the same parts to their original positions.

  2. INSTALL EXHAUST TAILPIPE ASSEMBLY

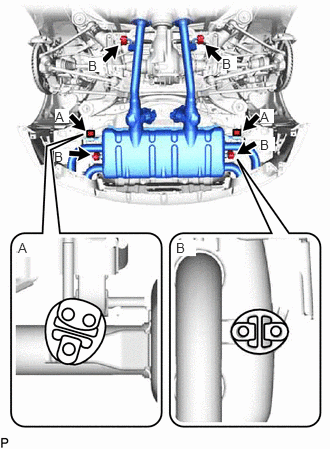

    1. Install the 6 exhaust pipe supports to the exhaust tailpipe assembly as shown in the illustration.
      GTY782867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Type A:

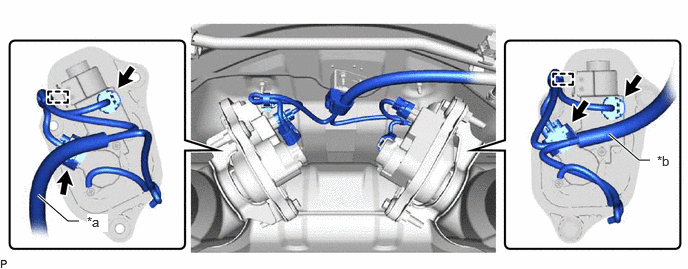

      Attach the 2 clamps and connect the 4 connectors as shown in the illustration.

      GTY1084524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Black *b White
    3. for Type B:

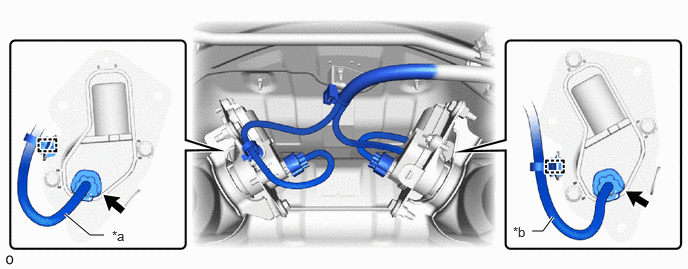

      Attach the 2 clamps and connect the 2 connectors as shown in the illustration.

      GTY1084633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Black *b White
  3. INSTALL FRONT EXHAUST PIPE ASSEMBLY
    1. Install 2 new gaskets to the front exhaust pipe assembly of the rear side.
      GTY818612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install 2 new gaskets to the exhaust manifold sub-assembly RH and exhaust manifold sub-assembly LH.
      GTY818611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the front exhaust pipe assembly to the exhaust tailpipe assembly with 4 new nuts and 4 new bolts.

      Torque: 39 N.m (398 kgf/cm, 29 ft.lbf)

      NOTE:

      Do not reuse the bolt, nut and gasket.

    4. Install the front exhaust pipe assembly to the exhaust manifold sub-assembly RH and exhaust manifold sub-assembly LH with 4 new nuts and 4 new bolts.

      Torque: 39 N.m (398 kgf/cm, 29 ft.lbf)

      NOTE:

      Do not reuse the bolt, nut and gasket.

  4. INSTALL REAR NO. 4 BUMPER SIDE SUPPORT RH
    1. Install the rear No. 4 bumper side support RH with the 2 screws, 2 clips and grommet.
  5. INSTALL REAR NO. 4 BUMPER SIDE SUPPORT LH
    1. Install the rear No. 4 bumper side support LH with the 2 screws, 2 clips and grommet.
  6. INSTALL NO. 1 DIFFERENTIAL SUPPORT PROTECTOR
    1. Install the No. 1 differential support protector with the 3 nuts.

      Torque: 8.0 N.m (82 kgf/cm, 6 ft.lbf)

  7. INSTALL NO. 2 DIFFERENTIAL SUPPORT PROTECTOR
    1. Install the No. 2 differential support protector with the 3 nuts.

      Torque: 8.0 N.m (82 kgf/cm, 6 ft.lbf)

  8. INSTALL FRONT CENTER FLOOR BRACE SUB-ASSEMBLY

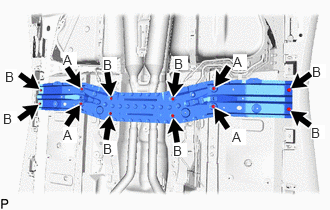

    1. Install the front center floor brace sub-assembly with the 12 bolts.

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

      GTY777353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt Length

      Item Length
      Bolt A 21 mm (0.827 in.)
      Bolt B 44 mm (1.73 in.)
  9. INSTALL OXYGEN SENSOR (for Bank 2)

    Refer to PROCEDURE - Step 1

  10. INSTALL OXYGEN SENSOR (for Bank 1)

    Refer to PROCEDURE - Step 2

  11. CONNECT OXYGEN SENSOR CONNECTOR

    Refer to PROCEDURE - Step 3

  12. INSTALL FRONT SEAT ASSEMBLY

    Refer to INSTALLATION [03/2017 - 04/2020] , or refer to INSTALLATION [04/2020 - 05/2023] , or refer to INSTALLATION [05/2023 - ]

  13. INSTALL FRONT FLOOR COVER RH
    1. Install the front floor cover RH with the 3 clips and grommet.
  14. INSTALL FRONT FLOOR COVER LH
    1. Install the front floor cover LH with the 3 clips and grommet.
  15. INSTALL FRONT FENDER SEAL RH
    1. Install the front fender seal RH with the 6 clips, 4 grommets, nut and bolt.

      Torque: 8.0 N.m (82 kgf/cm, 6 ft.lbf)

  16. INSTALL FRONT FENDER SEAL LH
    1. Install the front fender seal LH with the 6 clips, 4 grommets, nut and bolt.

      Torque: 8.0 N.m (82 kgf/cm, 6 ft.lbf)

  17. INSTALL REAR FLOOR SIDE MEMBER COVER RH
    1. Install the rear floor side member cover RH with the 2 clips, 3 bolts, nut, and screw.

      Torque: 8.0 N.m (82 kgf/cm, 6 ft.lbf)

  18. INSTALL REAR FLOOR SIDE MEMBER COVER LH
    1. Install the rear floor side member cover LH with the 2 clips, 3 bolts, nut, and screw.

      Torque: 8.0 N.m (82 kgf/cm, 6 ft.lbf)

  19. INSPECT FOR EXHAUST GAS LEAK

    If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.

    If an exhaust gas leak has been repaired, perform an inspection following the repair.

    Refer to INITIALIZATION [03/2017 - ]
