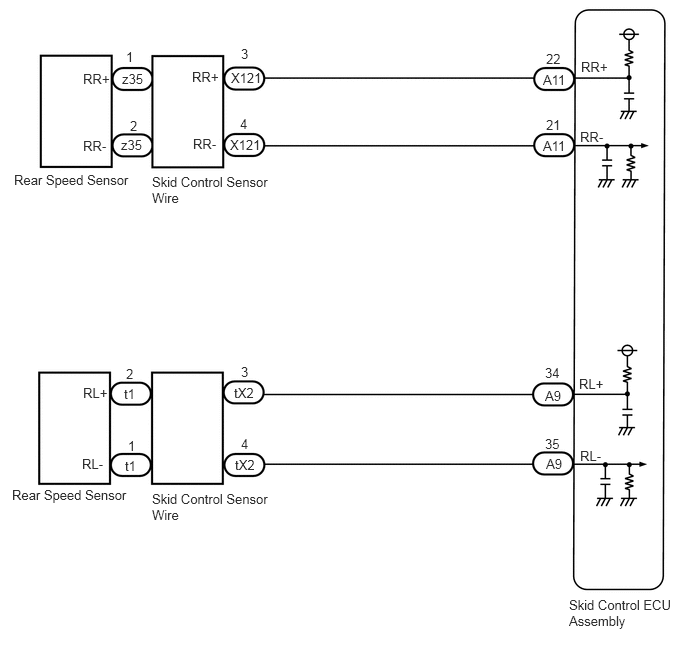

DTC C1466-33: Rear Speed Sensor RH Circuit; DTC C1467-34: Rear Speed Sensor LH Circuit [03/2017 - 09/2018]: Wiring Diagram

GTY835886

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
