ABS Operates Before Necessary When Braking [03/2017 - ]: Procedure
- PERFORM TEST MODE (SIGNAL CHECK) INSPECTION (SPEED SENSOR CIRCUIT)
- Using the Techstream, perform a Test Mode (Signal Check) inspection sensor check and check that speed sensor Test Mode (Signal Check) inspection items change from incomplete to complete.
Refer to TEST MODE PROCEDURE [03/2017 - 05/2023] , or refer to TEST MODE PROCEDURE [05/2023 - ]
Chassis > ABS/VSC/TRAC > Utility
Tester Display Signal Check OK
Speed sensor Test Mode (Signal Check) inspection items change from incomplete to complete.
Result
Proceed to OK NG
Result:
NG
INSPECT AND REPAIR MALFUNCTIONING SPEED SENSOR CIRCUIT
Result:
OK
See step 2
- Using the Techstream, perform a Test Mode (Signal Check) inspection sensor check and check that speed sensor Test Mode (Signal Check) inspection items change from incomplete to complete.
- CHECK SPEED SENSOR AND SENSOR ROTOR SERRATIONS

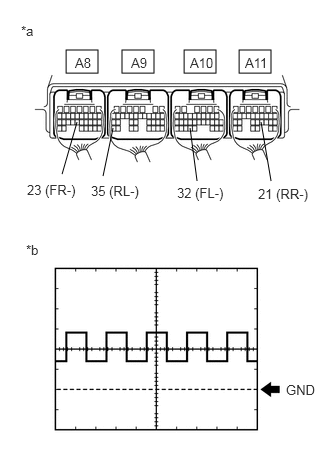

- Connect an oscilloscope to the front speed sensor terminal of the skid control ECU assembly and body ground.
*a Component with harness connected
(Skid Control ECU Assembly)*b Normal Signal Waveform - Check the waveform output when the wheels are rotated.
OK
The same waveform is output from all the sensors and there is no noise or interference in the waveform.
- Check that the waveform does not change while jiggling a connector or a wire harness.
OK
The waveform does not change.
HINT:
- As the vehicle speed (wheel revolution speed) increases, the waveform cycle narrows.
- When noise is identified in the waveform on the oscilloscope, the erratic signals are likely due to speed sensor rotor scratches, looseness or attached foreign matter.
NOTE:- When cleaning the rear speed sensor, make sure to clean the installation hole before installation.
- Do not use parts cleaner when cleaning the rear speed sensor rotor.
HINT:
- The front speed sensor and front speed sensor rotor are incorporated into the front axle hub sub-assembly.
If the front speed sensor and front speed sensor rotor need to be replaced, replace the front axle hub sub-assembly.
- The rear speed sensor rotor is incorporated into the rear axle hub and bearing assembly.
If the rear speed sensor rotor needs to be replaced, replace the rear axle hub and bearing assembly.
Result
Result Proceed to OK (for Front) A OK (for Rear) B NG C
Result:
A
REPLACE FRONT AXLE HUB SUB-ASSEMBLY. Refer to REMOVAL [03/2017 - 05/2023] , or refer to REMOVAL [05/2023 - 09/2023] , or refer to REMOVAL [09/2023 - ]
Result:
B
CLEAN REAR SPEED SENSOR AND REAR SPEED SENSOR ROTOR
Result:
C
CLEAN OR REPLACE MALFUNCTIONING SPEED SENSOR CIRCUIT
- Connect an oscilloscope to the front speed sensor terminal of the skid control ECU assembly and body ground.
