Components [01/2021 - ]

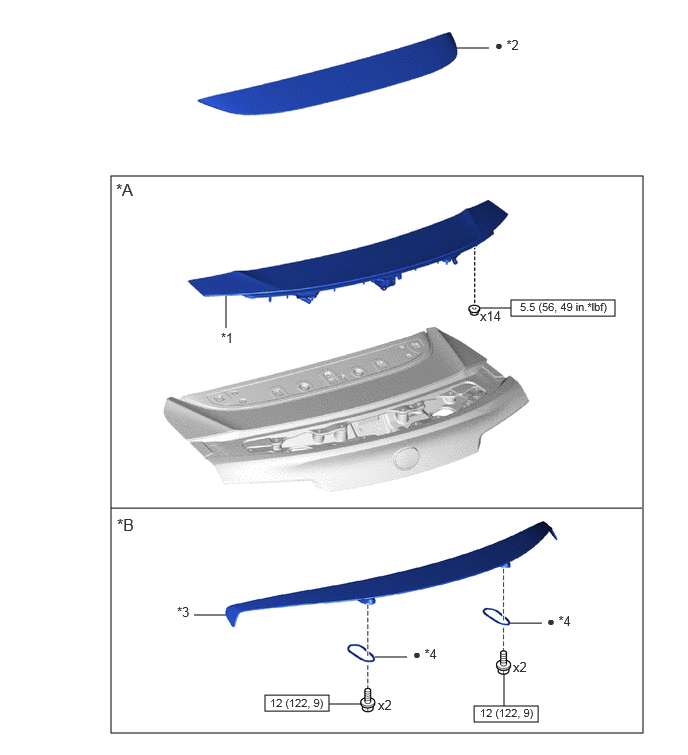

Fig 1: Luggage Compartment Door Replacement Components With Torque Specifications [01/2021 - ] (1 Of 3)
| *A | w/ Active Rear Wing | *B | w/ Rear Spoiler |
| *1 | ACTIVE REAR WING | *2 | OUTER LOWER LUGGAGE COMPARTMENT DOOR PANEL |
| *3 | REAR SPOILER SUB-ASSEMBLY | *4 | REAR SPOILER SEAL |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
Fig 2: Luggage Compartment Door Replacement Components With Torque Specifications [01/2021 - ] (2 Of 3)
| *1 | LUGGAGE COMPARTMENT DOOR ASSIST GRIP | *2 | LUGGAGE COMPARTMENT DOOR COVER |
| *3 | LUGGAGE COMPARTMENT DOOR HOUSING | *4 | LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY |
| *5 | LUGGAGE DOOR LOCK PROTECTOR | *6 | NO. 1 LUGGAGE COMPARTMENT TRIM BRACKET |
| *7 | NO. 4 LUGGAGE ROOM WIRE | *8 | NO. 6 ANTENNA CORD SUB-ASSEMBLY |
| *9 | SATELLITE RADIO ANTENNA ASSEMBLY | *10 | TELEVISION CAMERA ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
Fig 3: Luggage Compartment Door Replacement Components With Torque Specifications [01/2021 - ] (3 Of 3)
| *1 | FRONT LUGGAGE COMPARTMENT TRIM COVER | *2 | INNER LUGGAGE COMPARTMENT TRIM COVER LH |
| *3 | INNER LUGGAGE COMPARTMENT TRIM COVER RH | *4 | LUGGAGE COMPARTMENT TRIM BOX |
| *5 | LUGGAGE COMPARTMENT TRIM COVER LH | *6 | LUGGAGE COMPARTMENT TRIM COVER RH |
| *7 | NO. 1 DECK BOARD | *8 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *9 | NO. 2 DECK BOARD | *10 | REAR FLOOR FINISH PLATE |
| *11 | SIDE TRIM BOX | *12 | ROPE HOOK |
| *13 | ROPE HOOK ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
