Adjustment [03/2017 - ]: Procedure
- INSPECT LUGGAGE COMPARTMENT DOOR PANEL ASSEMBLY

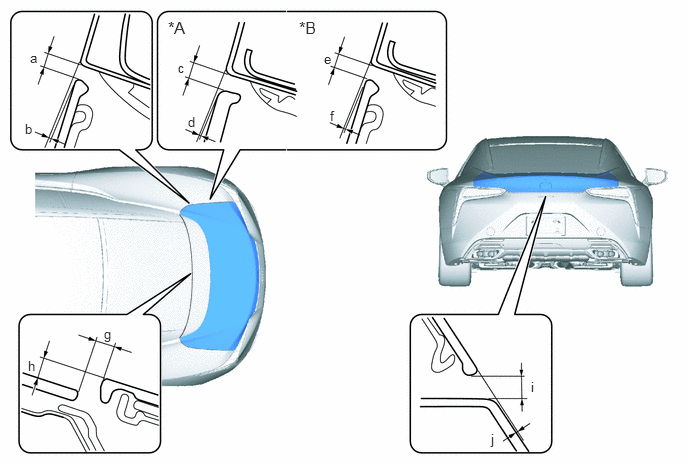

- Check that the clearance measurements of areas a through d are within each standard range.
*A w/ Rear Active Wing *B w/o Rear Active Wing Standard Clearance
Area Measurement Area Measurement a 2.3 mm (0.091 in.) to 5.3 mm (0.209 in.) b -1.5 mm (-0.059 in.) to 1.5 mm (0.059 in.) c 2.3 mm (0.091 in.) to 6.3 mm (0.248 in.) d -2.0 mm (-0.079 in.) to 2.0 mm (0.079 in.) e 2.3 mm (0.091 in.) to 5.3 mm (0.209 in.) f -0.7 mm (-0.028 in.) to 1.3 mm (0.051 in.) g 2.85 mm (0.112 in.) to 7.85 mm (0.309 in.) h
(Reference)5.65 mm (0.222 in.) i 3.7 mm (0.146 in.) to 7.7 mm (0.303 in.) j -2.0 mm (-0.079 in.) to 2.0 mm (0.079 in.)
- Check that the clearance measurements of areas a through d are within each standard range.
- ADJUST LUGGAGE COMPARTMENT DOOR PANEL ASSEMBLY

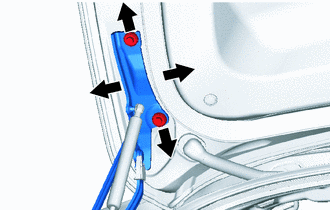

- Before adjusting the upper end of the back door up and down or left and right, loosen the bolts.
- Tighten the hinge bolts on the body after the adjustment.
Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

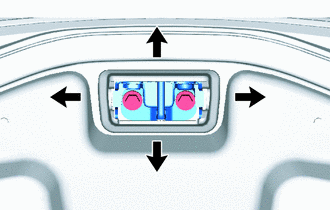

Adjust the striker position by slightly loosening the striker bolts and hitting the striker with a brass bar.
- Tighten the striker bolts after the adjustment.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Before adjusting the upper end of the back door up and down or left and right, loosen the bolts.
