Removal [03/2017 - ]: Procedure

  1. REMOVE LUGGAGE DOOR LOCK PROTECTOR

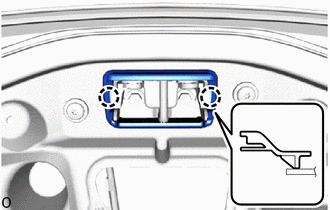

    1. Detach the claws and remove the luggage door lock protector.
      GTY831472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY

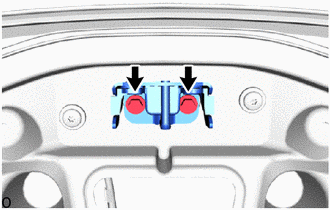

    1. Remove the 2 bolts and luggage compartment door striker assembly.
      GTY794301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
