Door / Hatch - Service Information (Coupe) (2 Of 2)
>>
Luggage Compartment Door Striker
>>
Components [03/2017 - ]
Components [03/2017 - ]

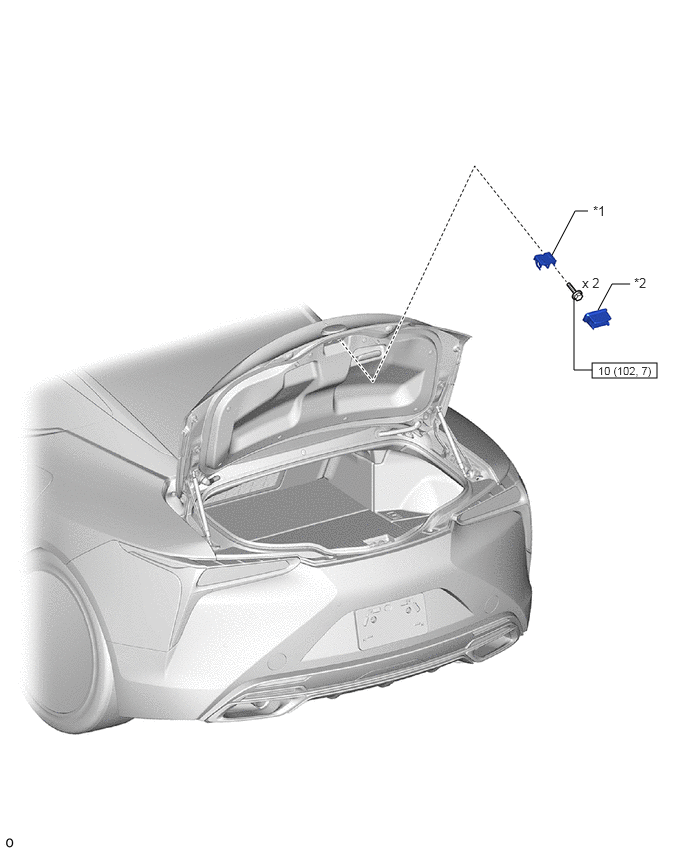

Fig 1: Luggage Compartment Door Striker Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY
*2
LUGGAGE DOOR LOCK PROTECTOR
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
