Components [03/2017 - ]

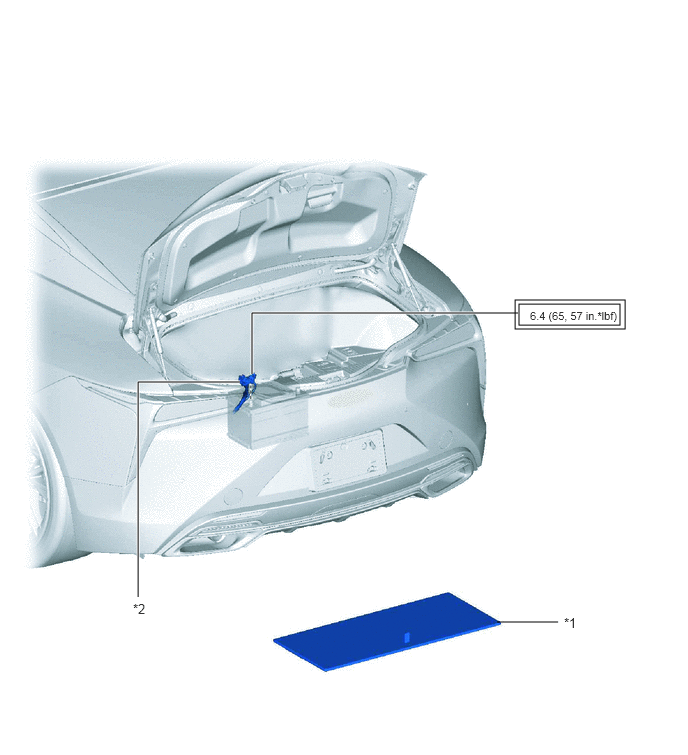

Fig 1: Luggage Compartment Door Opener Main Switch Replacement Components With Torque Specifications (1 Of 2)
| *1 | NO. 2 DECK BOARD | *2 | NEGATIVE BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

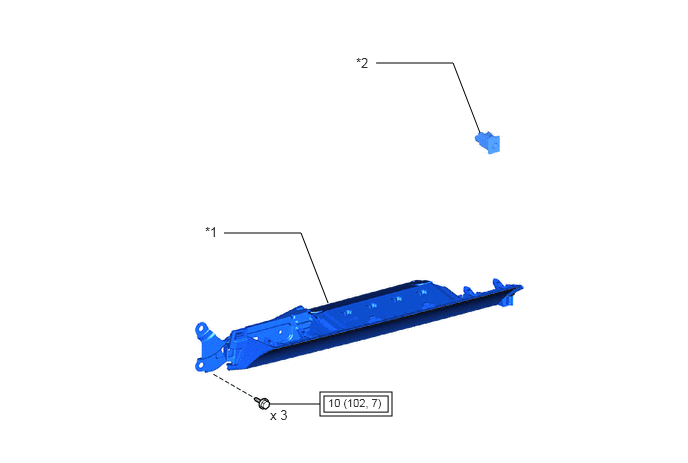

Fig 2: Luggage Compartment Door Opener Main Switch Replacement Components With Torque Specifications (2 Of 2)
| *1 | LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY | *2 | LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
