Inspection [03/2017 - ]: Procedure

  1. INSPECT LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH (NO. 3 COMBINATION SWITCH ASSEMBLY)
    1. Remove the luggage compartment door opener inner switch (No. 3 combination switch assembly).

      Refer to PROCEDURE - Step 2

    2. Check the resistance.

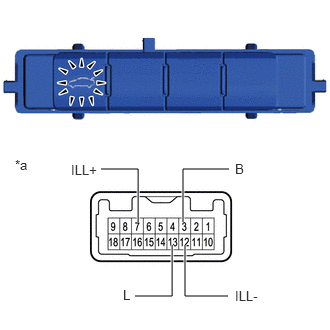

      GTY811436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Luggage Compartment Door Opener Inner Switch (No. 3 Combination Switch Assembly))
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        3(B) - 13(L) Luggage Compartment Opening Switch OFF 10 kΩ or higher
        Luggage Compartment Opening Switch ON Below 1 Ω

        If the result is not as specified, replace the luggage compartment door opener inner switch (No. 3 combination switch assembly).

    3. Check that the switch illuminates.
      1. Apply battery voltage to the No. 3 combination switch assembly and check that the LED illuminates.

        OK

        Measurement Condition Specified Condition
        Battery positive (+) → 7 (ILL+)
        Battery negative (-) → 12 (ILL-)        		 LED illuminates

        If the result is not as specified, replace the luggage compartment door opener inner switch (No. 3 combination switch assembly).

    4. Install the luggage compartment door opener inner switch (No. 3 combination switch assembly).

      Refer to PROCEDURE - Step 1
