Removal [03/2017 - ]: Procedure

Refer to PRECAUTION [03/2017 - 05/2023] , or refer to PRECAUTION [05/2023 - ]

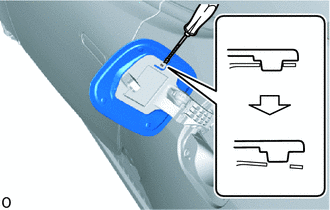

1. Insert a thin-bladed screwdriver with its tip wrapped with protective tape into the gap between the fuel filler lid assembly and fuel filler opening lid sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

2. Raise up the inserted screwdriver and hold it with the lock released.

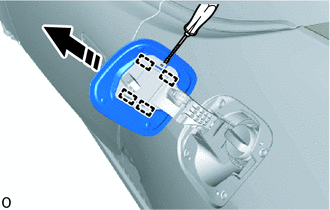

3. Slide the fuel filler opening lid assembly in the direction shown in the illustration, detach the hooks and remove it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

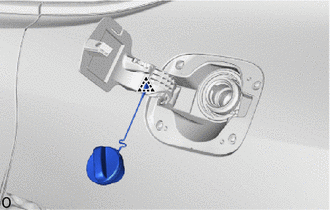

1. Turn counterclockwise the fuel tank cap assembly and remove it.
2. Detach the clip and disconnect the strap.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  13, or refer to REMOVAL [05/2023 - ]

Refer to REMOVAL [03/2017 - 05/2023] , or refer to REMOVAL [05/2023 - ]

Refer to PROCEDURE - Step 2

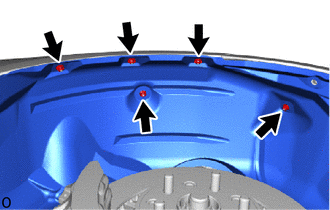

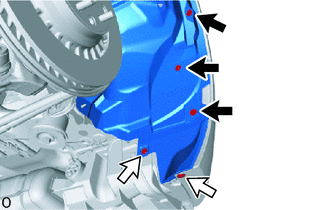

1. Remove the 5 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 2 clips and 3 grommets.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Grommet
   	Clip

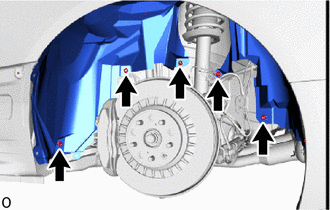

3. Remove the 5 clips and remove the rear wheel house liner LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

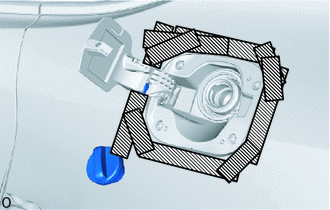

1. Apply protective tape as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

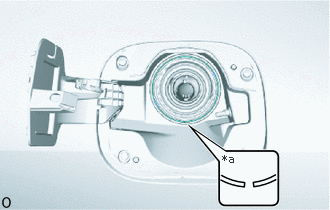

2. Remove the fuel inlet box ring from the fuel tank filler pipe shield lip.

   HINT:

   Remove from the end gap of the fuel inlet box ring while expanding it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   End Gap

   NOTE:

   Do not reuse the fuel inlet box ring which transformed.

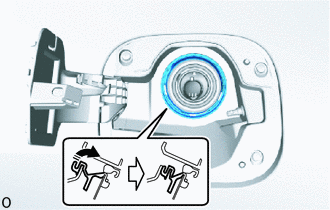

3. Press the fuel filler opening lid sub-assembly into the entire circumference of the lip portion of the fuel tank filler pipe shield.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Push

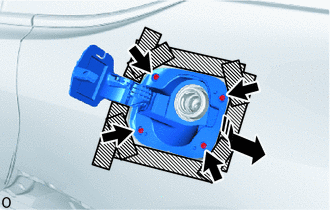

4. Remove the 4 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

5. Raise up the fuel filler opening lid sub-assembly toward the rear of the vehicle and remove the fuel filler opening lid sub-assembly backwards diagonally.

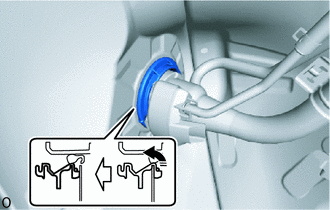

6. Push the entire circumference of the lip of the fuel tank filler pipe shield to the outside from the inside of the rear fender.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Push

7. Remove the fuel tank filler pipe shield.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

8. Install the fuel tank cap assembly to the fuel filler opening to prevent foreign matter from entering.

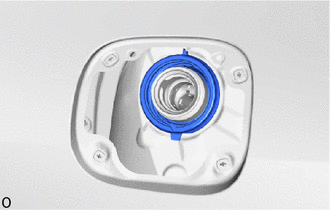

9. Remove the fuel inlet box ring from fuel tank filler pipe shield.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not reuse the fuel inlet box ring which transformed.
