Components [03/2017 - ]

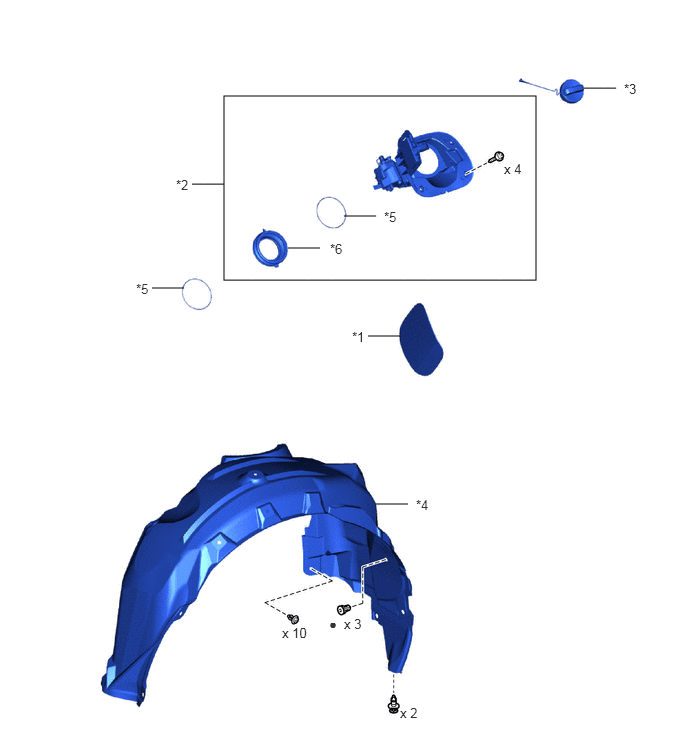

Fig 1: Fuel Lid Opener Unit Replacement Components
GTY819926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL FILLER OPENING LID ASSEMBLY *2 FUEL FILLER OPENING LID SUB-ASSEMBLY
*3 FUEL TANK CAP ASSEMBLY *4 REAR WHEEL HOUSE LINER LH
*5 FUEL INLET BOX RING *6 FUEL TANK FILLER PIPE SHIELD
• Non-reusable part - -
