Removal [03/2017 - ]: Procedure

REMOVE NO. 1 DECK BOARD
Refer to PROCEDURE - Step 10 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 11 [01/2021 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]
REMOVE REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 15 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 16 [01/2021 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]
REMOVE BACK DOOR LOCK PROTECTOR
1. Remove the back door protector.

REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

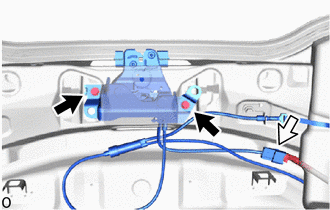

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt
	Connector

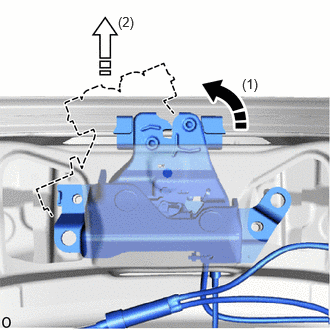

Slide the luggage compartment door lock assembly and remove it from the service hole as shown in the illustration.

NOTE:

Do not damage the vehicle or the luggage compartment door lock assembly.

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the clamp, disconnect the luggage door lock control cable and remove the luggage compartment door lock assembly.
