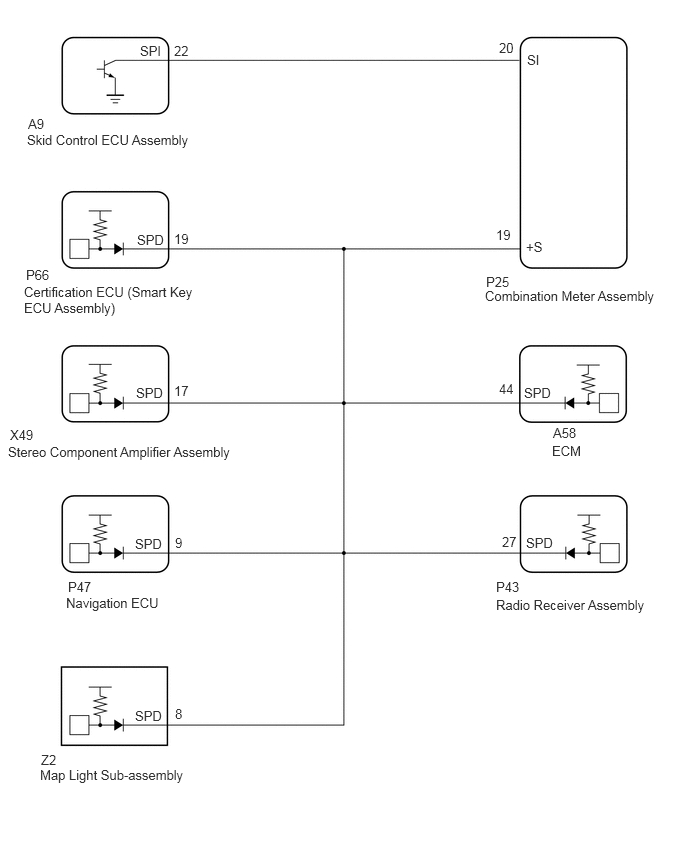

Speed Signal Circuit [03/2017 - 05/2023]: Wiring Diagram

GTY812695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
