Removal [08/2015 - ]: Procedure

  1. REMOVE WATER INLET SUB-ASSEMBLY WITH THERMOSTAT
    1. Remove the water inlet with thermostat (Refer to REMOVAL [08/2015 - ] ).
  2. REMOVE NO. 1 RADIATOR HOSE

    See step  10

  3. REMOVE FAN SHROUD

    See step  11

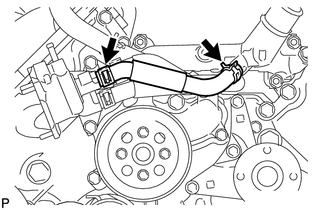

  4. REMOVE NO. 1 WATER BY-PASS HOSE
    1. Remove the No. 1 water by-pass hose.
      GTY286427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

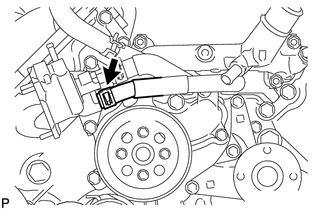

  5. DISCONNECT NO. 8 WATER BY-PASS HOSE
    1. Disconnect the No. 8 water by-pass hose.
      GTY275254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

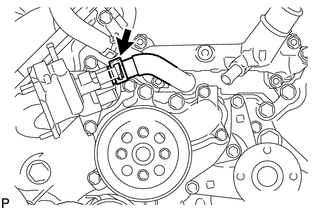

  6. DISCONNECT NO. 5 WATER BY-PASS HOSE
    1. Disconnect the No. 5 water by-pass hose.
      GTY275258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

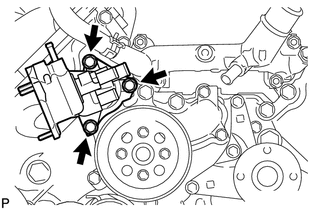

  7. REMOVE WATER INLET HOUSING
    1. Remove the 3 bolts and water inlet housing.
      GTY275260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the water pump.

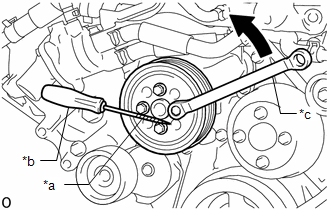

  8. REMOVE WATER PUMP PULLEY
    1. Using a screwdriver or equivalent with its tip wrapped in protective tape, hold the water pump pulley.
      GTY948214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Hold
      *c Turn
    2. Remove the 4 bolts and water pump pulley.

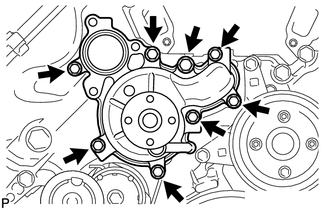

  9. REMOVE WATER PUMP ASSEMBLY
    1. Remove the 8 bolts, water pump and gasket.
      GTY275277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
