Removal [08/2021 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [08/2015 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2021 - 08/2022] , or refer to INITIALIZATION [08/2022 - ]

  3. REMOVE FRONT SEAT ASSEMBLY RH

    Refer to REMOVAL [08/2021 - ]

  4. REMOVE AMPLIFIER COVER

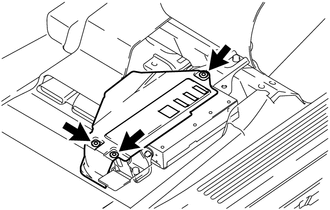

    1. Fold back the floor carpet.
    2. Remove the 3 clips and amplifier cover.
      GTY1083952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET

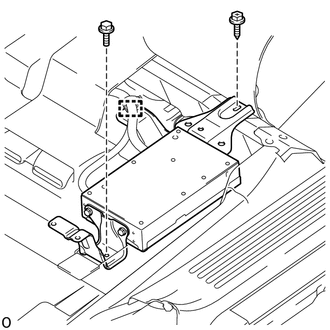

    1. Disconnect each connector.
    2. Detach the clamp.
      GTY1083686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt, screw and stereo component amplifier assembly with bracket.
  6. REMOVE NO. 1 AMPLIFIER BRACKET
    1. Remove the 2 screws and No. 1 amplifier bracket.
      GTY1083690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 AMPLIFIER BRACKET
    1. Remove the 2 screws and No. 2 amplifier bracket.
      GTY1083696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY
