Removal [08/2021 - ]: Procedure

  1. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET

    (Refer to REMOVAL [08/2021 - ] )

  2. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

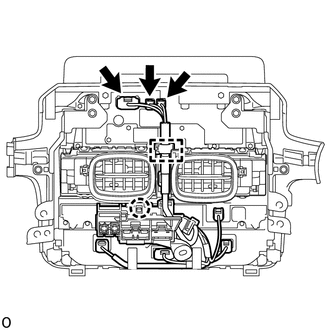

    1. Disconnect the 4 connectors.
      GTY1083719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp, claw and disconnect the No. 4 instrument panel wire so that the hazard warning signal switch assembly can be removed.

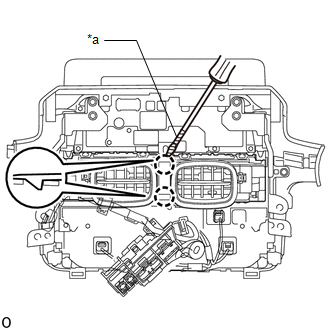

    3. Using a screwdriver, detach the 2 claws and remove the hazard warning signal switch assembly.
      GTY1083972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Tape the screwdriver tip before use.
