Clock
>>
Components [08/2021 - ]
Components [08/2021 - ]

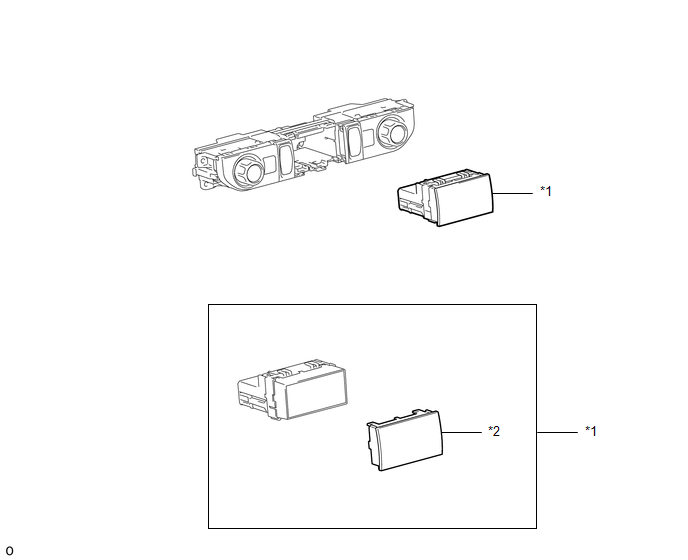

Fig 1: Clock Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CLOCK ASSEMBLY
*2
CLOCK LENS
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
