Removal [08/2019 - ]: Procedure

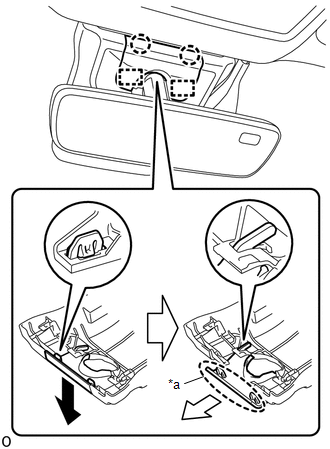

REMOVE NO. 2 FORWARD RECOGNITION COVER

Detach the 2 claws in the direction indicated by the arrow (1) as shown in the illustration.

NOTE:

If the 2 claws are detached separately they may become damaged. Therefore, remove them at the same time.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the 2 guides in the direction indicated by the arrow (2) in the illustration to remove the No. 2 forward recognition cover.

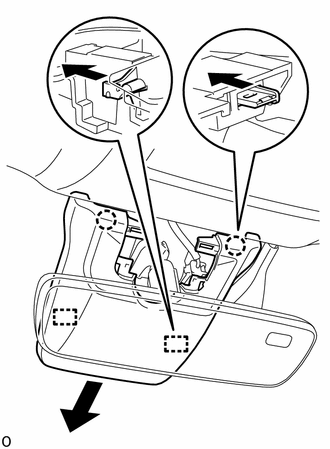

REMOVE NO. 1 FORWARD RECOGNITION COVER

Detach the 2 claws and 2 guides and remove the No. 1 forward recognition cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

NOTE:

When removing, press the cover parallel to the windshield glass surface and remove.

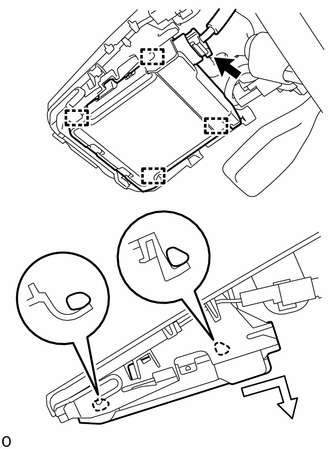

REMOVE FORWARD RECOGNITION LATCH

Detach the 2 claws in the direction indicated by the arrow (1) in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the 4 guides in the direction indicated by the arrow (2) in the illustration to remove the forward recognition latch.

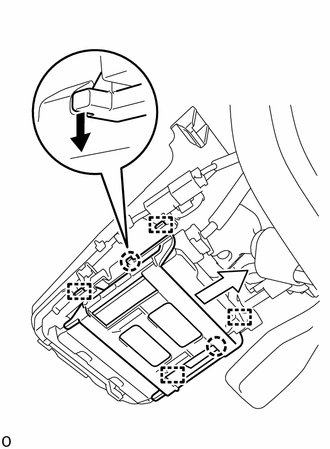

REMOVE FORWARD RECOGNITION CAMERA

NOTE:

If the forward recognition camera has been struck or dropped, replace it with a new one.

Disconnect the connector.

Remove in this Direction

NOTE:

Do not pull the harness forcibly when disconnecting the connector.

Detach the 4 guides and remove the forward recognition camera as shown in the illustration.
NOTE:
- Do not apply excessive force.
- If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
