Removal [05/2018 - ]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  2. REMOVE SUSPENSION TOWER DAMPER

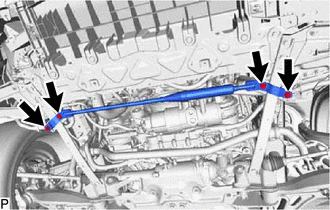

    1. Remove the 4 bolts and suspension tower damper from the No. 1 frame crossmember assembly and No. 2 frame crossmember assembly.
      GTY779838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not extend or compress the damper.
