Removal [10/2015 - 09/2016]: Procedure

Refer to PROCEDURE - Step 1

1. Disconnect the pad wear indicator wire connector from the front skid control sensor wire clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the front skid control sensor wire connector from the front axle hub sub-assembly.
3. Remove the 3 bolts and separate the front skid control sensor wire from the steering knuckle, front shock absorber with coil spring and vehicle body.
   NOTE:

   Be careful not to deform the bracket of the front shock absorber with coil spring when removing the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  9

1. Remove the clip and nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install SST to the front upper suspension arm assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	1 mm (0.0394 in.)

   • SST: 09960-20010
     1. 09961-02060
   NOTE:

   Check that the clearance measurement between SST and the steering knuckle is 1 mm (0.0394 in.).

3. Using SST, separate the front upper suspension arm assembly from the steering knuckle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Molybdenum grease application area	*b	Place wrench here
   *c	Center Nut	*d	Spacer
   *e	String	*f	Turn

   • SST: 09960-20010
     1. 09961-02010
   NOTE:

   • Apply molybdenum grease to the threads and end of the SST bolt.
   • Install SST with the center nut so that (A) and (B) shown in the illustration are parallel. Otherwise, the front upper suspension arm dust cover may be damaged.
   • Be sure to place a wrench on the part indicated in the illustration.
   • Do not damage the ball joint dust cover.
   • Do not damage the steering knuckle.
   • Make sure that SST is securely positioned on the spacer.
   • Be sure to tighten the string firmly to secure SST to the front upper suspension arm assembly to prevent SST from falling off.

   HINT:

   If the steering knuckle spacer has come off, replace the steering knuckle with a new one.

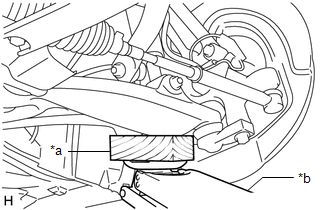

1. Support the front lower suspension arm assembly using a jack and wooden block.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Jack

   NOTE:

   Keep the front lower suspension arm assembly supported until installation of the front shock absorber with coil spring is complete.

2. Remove the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
   • Do not remove the bolt.
3. Loosen the lock nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   WARNING:

   • Only loosen the lock nut, do not remove it.
   • If the lock nut is removed with the front coil spring under tension, components of the front shock absorber with coil spring may fly off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the front shock absorber with coil spring will not be disassembled, do not loosen the lock nut.

4. Remove the 3 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Remove the bolt from the front shock absorber with coil spring (lower side).
6. Slowly lower the jack and remove the front shock absorber with coil spring.

1. Secure SST in a vise.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09727-30022
     1. 09727-00010
     2. 09727-00022
     3. 09727-00031
2. Attach the hooks of each SST arm across the diameter of the coil spring.
   WARNING:

   • Make sure that the hooks are securely attached to the coil spring.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
   • Make sure that the hooks of the upper and lower SST arms are attached to the coil spring so that the distance between the hooks is as large as possible.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
   • Make sure that the arms of SST are parallel and the number of coils between the arms is the same on each side.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
3. Install the stopper pins to the hooks of SST.
   WARNING:

   • Make sure that the stopper pins are installed securely.
   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Vehicle Nut

   Install SST and 2 vehicle nuts to the upper support as shown in the illustration.

   • SST: 09727-30022
     1. 09727-00090
     2. 09727-00100
5. Using SST, compress the coil spring.
   WARNING:

   • If the coil spring starts to bow out while using SST, stop immediately and reattach SST correctly.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
   • Do not compress the coil spring to the point where the coils touch each other.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
   • Do not use an impact wrench.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If an impact wrench is used, the threads of SST may be damaged, or sudden compression of the coil spring may cause a hook to disengage and the coil spring to fly out, resulting in injury.
   • If a stopper pin touches the coil spring while using SST, remove the stopper pin and continue with the procedure.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a stopper pin is removed, install SST (coil spring stopper belt) as shown in the illustration.
   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
   • SST: 09727-00110
6. Check that the coil spring has become detached, and then remove the lock nut.
   WARNING:

   • Do not remove the lock nut while the coil spring is under tension.
   • If the lock nut is removed with the coil spring under tension, components of the front shock absorber with coil spring may fly off, resulting in injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Remove the front suspension support assembly from the front shock absorber assembly.
8. Remove the front upper coil spring insulator from the front suspension support assembly.
9. Remove the front spring bumper from the front suspension support assembly.
10. Remove the front coil spring and SST.
    NOTE:

    Do not use an impact wrench. It will damage SST.
