Removal [10/2015 - ]: Procedure

See step  1

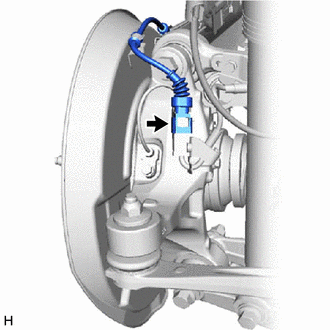

1. Disconnect the pad wear indicator wire connector from the rear speed sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

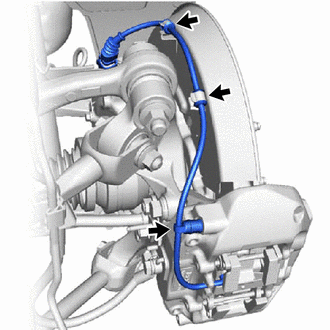

2. Disconnect the pad wear indicator wire assembly from the 2 clamps of the rear disc brake dust cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disconnect the bleeder plug cap portion of the pad wear indicator wire assembly from the rear disc brake bleeder plug.

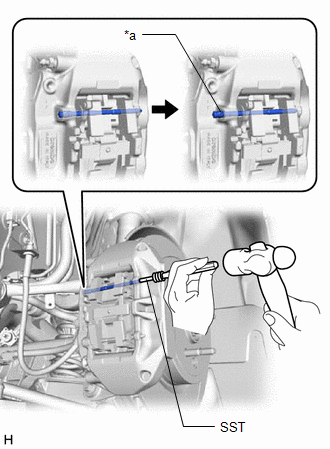

4. Using SST and a hammer, disengage the ring of the pad guide pin (upper) and push out the pad guide pin (upper) from the rear disc brake cylinder assembly.
   • SST: 09719-77040

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Ring

   NOTE:

   • Keep SST aligned with the pad guide pin (upper).
   • Do not damage the surface of the rear disc brake cylinder assembly.

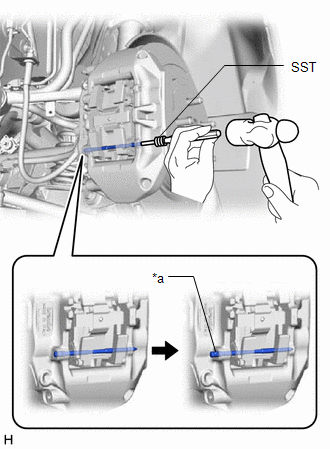

5. Using SST and a hammer, disengage the ring of the pad guide pin (lower) and push out the pad guide pin (lower) from the rear disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Ring

   • SST: 09719-77040
   NOTE:

   • Keep SST aligned with the pad guide pin (lower).
   • Do not damage the surface of the rear disc brake cylinder assembly.

6. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

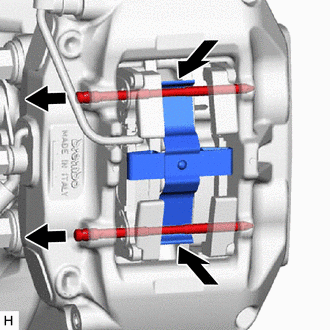

   While pushing the rear disc brake anti-rattle spring as shown in the illustration, remove the 2 pad guide pins.

7. Remove the rear disc brake anti-rattle spring.

8. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Notch

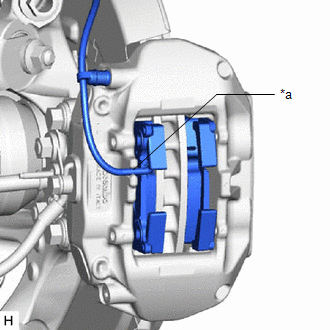

   Disengage the pad wear indicator wire assembly from the notch of the rear disc brake cylinder assembly.

9. Remove the 2 rear disc brake pads from the rear disc brake cylinder assembly.

10. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

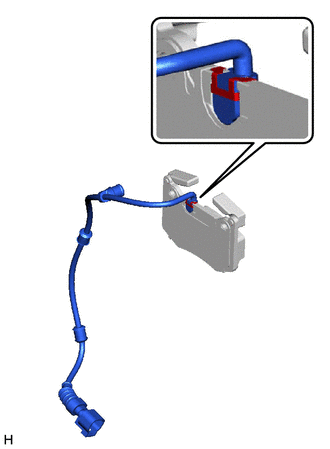

    Remove the pad wear indicator retainer and pad wear indicator wire assembly from the rear disc brake pad.

1. Remove the rear disc brake anti-squeal shim from each rear disc brake pad.
