Removal [10/2015 - ]: Procedure

REMOVE REAR SUSPENSION MEMBER BRACE LH

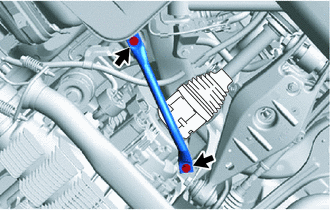

Remove the 2 bolts and rear suspension member brace LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR SUSPENSION MEMBER BRACE RH
HINT:

Use the same procedure as for the LH side.
REMOVE REAR AXLE ASSEMBLY LH
Refer to REMOVAL [10/2015 - ]
REMOVE REAR AXLE ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
DRAIN TORQUE TRANSFER MODULE FLUID
Refer to PROCEDURE - Step 2

REMOVE REAR DRIVE SHAFT ASSEMBLY LH

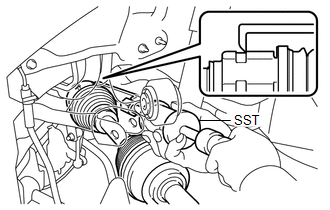

Using SST, remove the rear drive shaft assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Be careful not to damage the rear drive shaft oil seal, inboard joint boot and drive shaft dust cover.
Be careful not to drop the drive shaft assembly.

Using a screwdriver, remove the shaft snap ring.

REMOVE REAR DRIVE SHAFT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
