Components [10/2015 - ]: Illustration

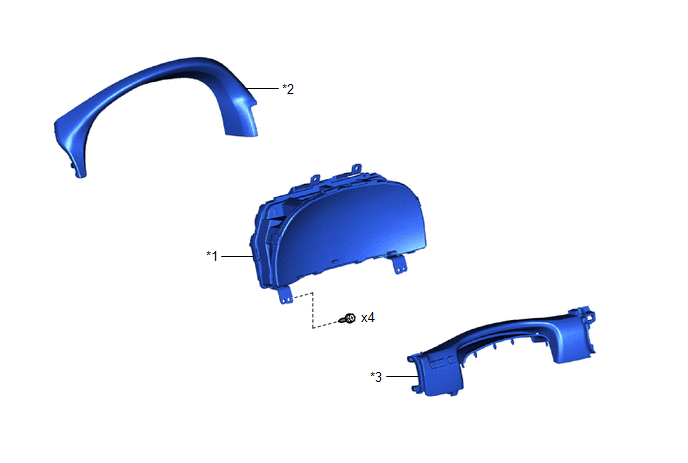

Fig 1: Combination Meter Replacement Components (1 Of 2)
GTY649886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY *2 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
*3 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY - -

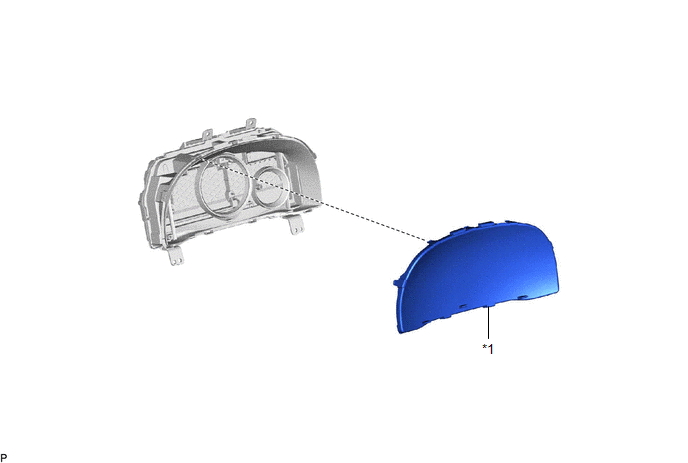

Fig 1: Combination Meter Replacement Components (2 Of 2)
GTY669451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER GLASS - -
