Inspection [10/2015 - ]: Procedure

  1. INSPECT CLOCK ASSEMBLY
    1. Check illumination.

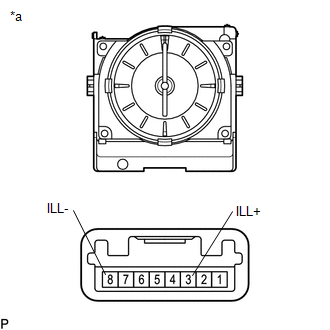

      GTY625856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Clock Assembly)
      1. Apply battery voltage to the clock assembly and check that it illuminates.

        OK

        Condition Specified Condition
        Battery positive (+) → Terminal 3 (ILL+)
        Battery negative (-) → Terminal 8 (ILL-)        		 Illuminates

        If the result is not as specified, replace the clock assembly.
