System Diagram [10/2015 - ]

  1. CAN SIGNAL

    Refer to SYSTEM DIAGRAM [10/2015 - ]

  2. DIRECT LINE SIGNAL

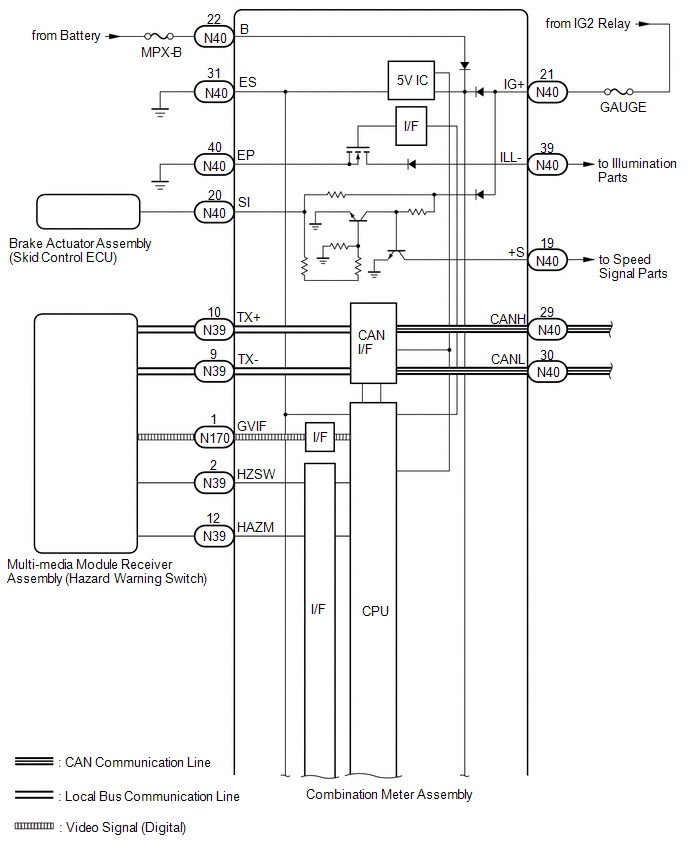

    GTY646088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

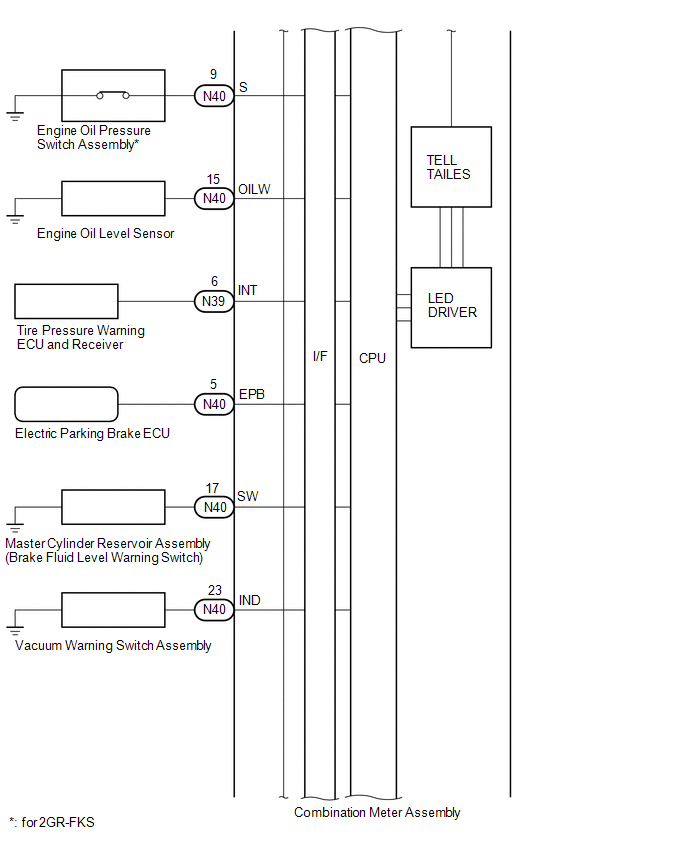

    GTY656399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

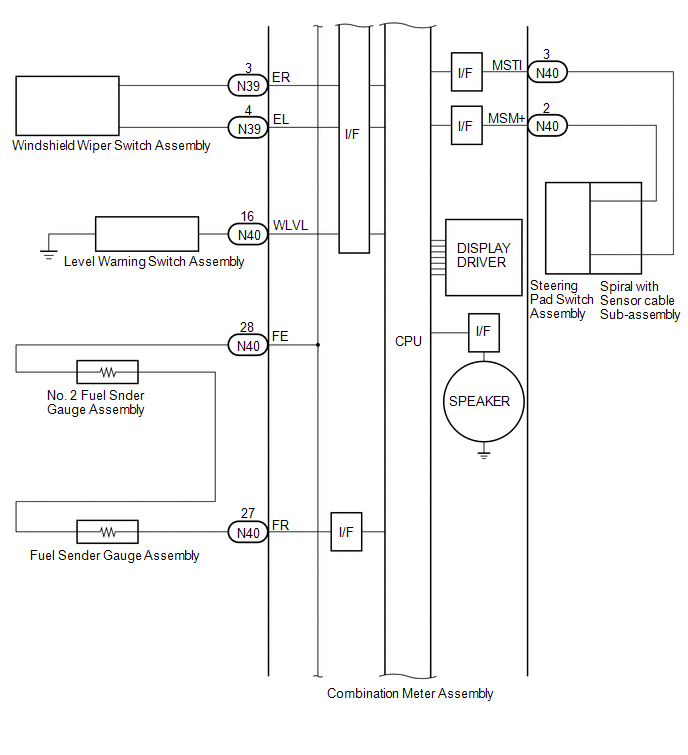

    GTY537093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

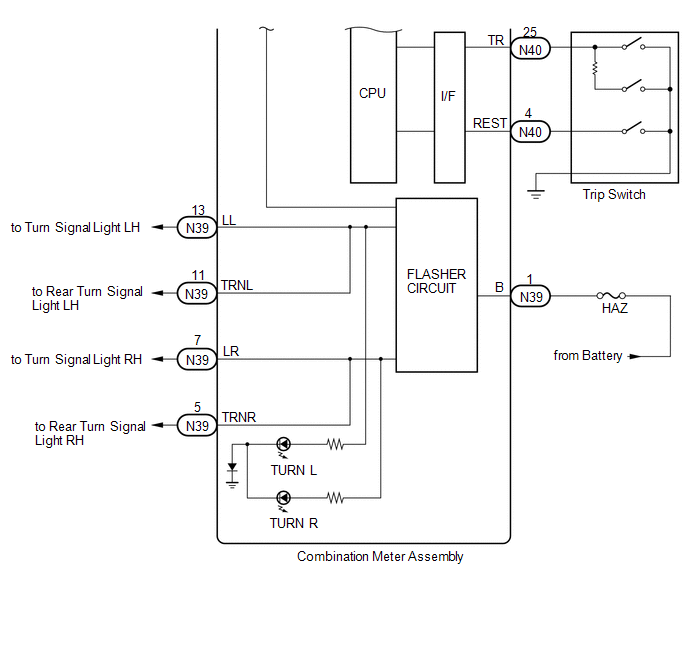

    GTY633083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
