Disassembly [09/2014 - ]: Procedure

  1. REMOVE ACCESSORY METER GLASS

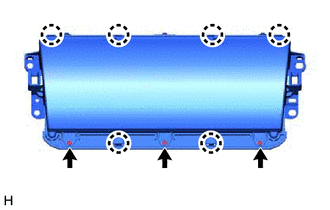

    GTY405557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 screws.
    2. Detach the 6 claws and remove the accessory meter glass.
