Removal [06/2018 - 09/2022]: Procedure

  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
      GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT LOCK RELEASE BUTTON COVER

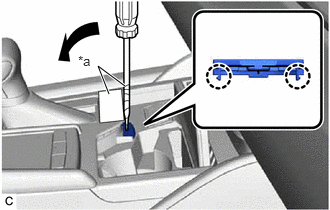

    1. Apply protective tape to the upper console panel sub-assembly at the location shown in the illustration.
      GTY815640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the upper console panel sub-assembly.
      NOTE:

      Be careful not to damage the shift lock release button cover and upper console panel sub-assembly.

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    See step  1

  4. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [06/2018 - 08/2020] , or refer to REMOVAL [08/2020 - 09/2022]

  5. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    NOTE:

    Before disconnecting the transmission control cable assembly, check that the shift lever is in N.

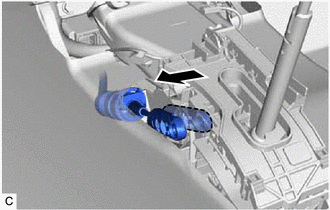

    1. Disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY834844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

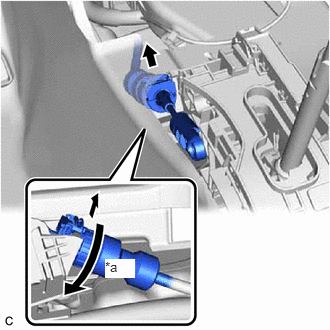

    2. Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY776743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Counterclockwise
  6. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

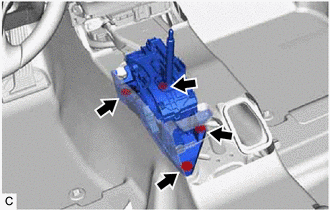

    1. Remove the 4 bolts.
      GTY809686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

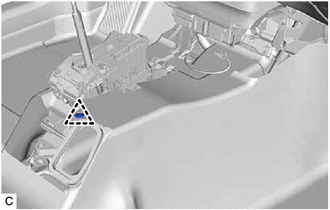

    2. Remove the clip to disconnect the No. 1 console box duct from the transmission floor shift assembly.
      GTY809696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

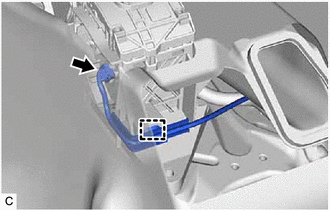

    3. Disconnect the transmission control switch connector.
      GTY834846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the clamp to disconnect the wire harness from the transmission floor shift assembly.

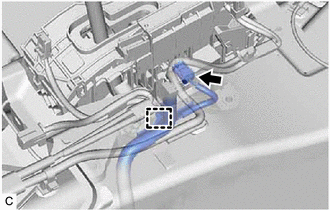

    5. Disconnect the shift lock control ECU connector.
      GTY809693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disengage the clamp to disconnect the wire harness from the transmission floor shift assembly.
    7. Remove the transmission floor shift assembly.
