On-Vehicle Inspection [09/2022 - ]: Procedure

SECURE VEHICLE

Fully apply the parking brake and chock a wheel.

WARNING:

Make sure to apply the parking brake and chock a wheel before performing this procedure.
If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT SHIFT LEVER POSITION
1. When moving the shift lever from P to R with the engine switch on (IG) and the brake pedal depressed, check that the shift lever moves smoothly and correctly into position.
2. Start the engine and check that the vehicle moves forward when the shift lever is moved from N to D and moves rearward when the shift lever is moved to R.
  If the operation is not as specified, inspect or adjust the park/neutral position switch assembly or transmission control cable assembly.
INSPECT SHIFT LOCK OPERATION
1. Move the shift lever to P.
2. Turn the engine switch off.
3. Check that the shift lever cannot be moved from P to any other position.
4. Turn the engine switch on (IG), depress the brake pedal, and check that the shift lever can be moved from P to any other position.
  If the operation is not as specified, inspect the transmission floor shift assembly.

  Refer to INSPECTION [06/2018 - ]

INSPECT SHIFT LOCK RELEASE BUTTON OPERATION

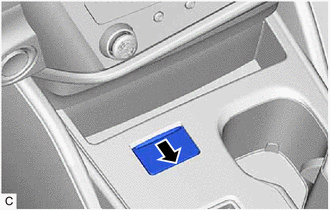

Slide the instrument panel cup holder door in the direction shown by the arrow in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slide

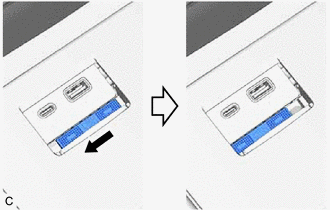

Slide the No. 2 console box hole cover in the direction shown by the arrow in the illustration.

Slide

When moving the shift lever with the shift lock release button pressed, check that the shift lever can be moved from P to any other position.
