Components [08/2020 - ]

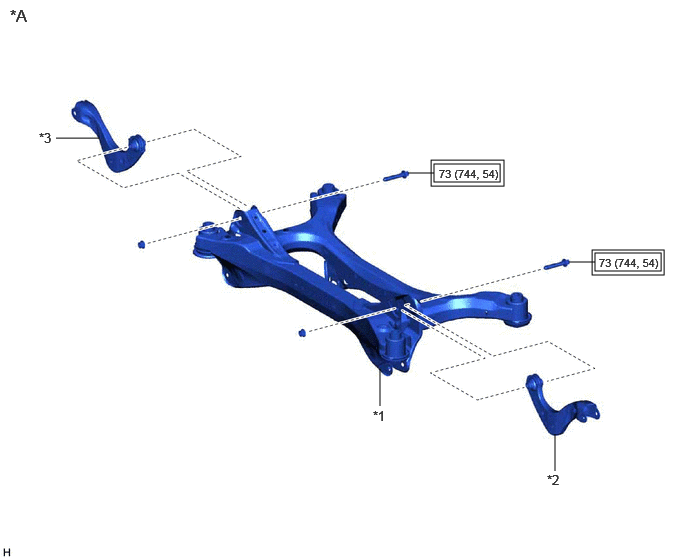

Fig 1: Rear Upper Arm Replacement Components With Torque Specifications [08/2020 - ] (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD	-	-
*1	REAR SUSPENSION MEMBER SUB-ASSEMBLY	*2	REAR UPPER CONTROL ARM ASSEMBLY LH
*3	REAR UPPER CONTROL ARM ASSEMBLY RH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

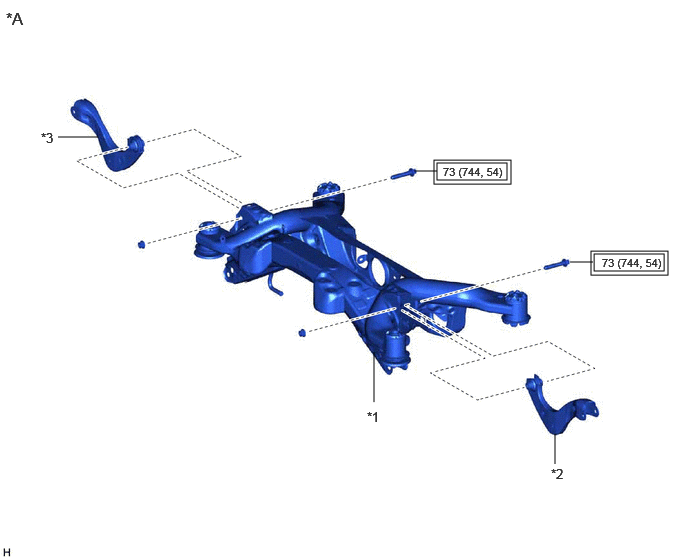

Fig 2: Rear Upper Arm Replacement Components With Torque Specifications [08/2020 - ] (2 of 2)

*A	for AWD	-	-
*1	REAR SUSPENSION MEMBER SUB-ASSEMBLY	*2	REAR UPPER CONTROL ARM ASSEMBLY LH
*3	REAR UPPER CONTROL ARM ASSEMBLY RH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
