Components [06/2018 - 08/2020]
Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications [06/2018 - 08/2020] (1 Of 4)
| *A | for Gasoline Model | *B | for RH Side |
| *C | for LH Side | - | - |
| *1 | NO. 1 FLOOR UNDER COVER | *2 | NO. 2 FLOOR UNDER COVER |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

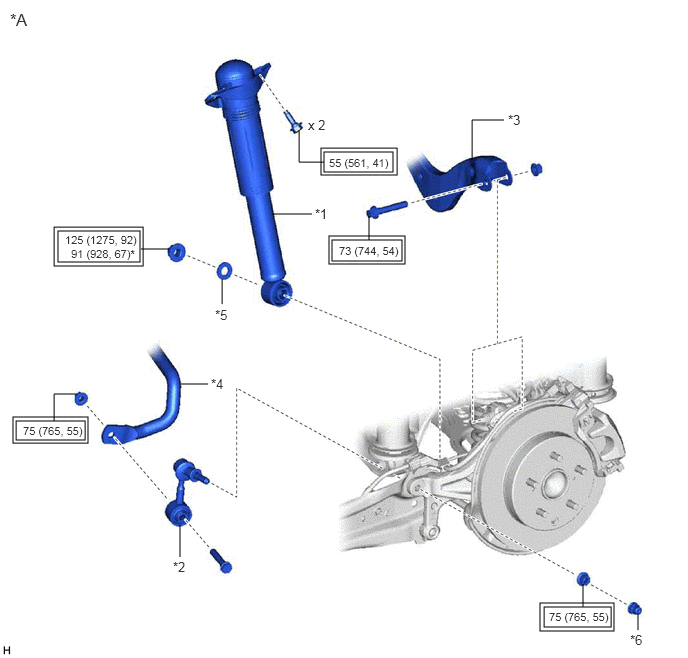

Fig 2: Rear Shock Absorber Replacement Components With Torque Specifications [06/2018 - 08/2020] (2 Of 4)
| *A | w/o AVS | - | - |
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR STABILIZER LINK ASSEMBLY |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY | *4 | REAR STABILIZER BAR |
| *5 | PLATE WASHER | *6 | CAP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a ball joint lock nut wrench |

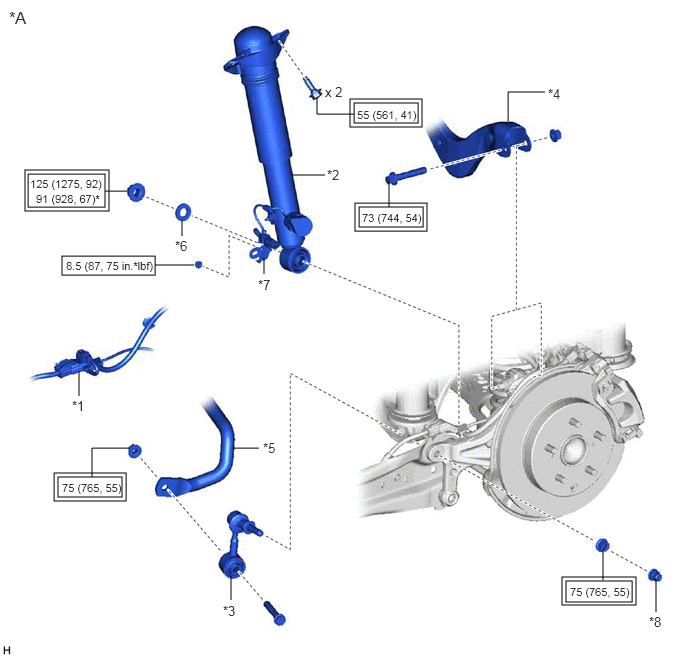

Fig 3: Rear Shock Absorber Replacement Components With Torque Specifications [06/2018 - 08/2020] (3 Of 4)
| *A | w/ AVS | - | - |
| *1 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *2 | REAR SHOCK ABSORBER ASSEMBLY |
| *3 | REAR STABILIZER LINK ASSEMBLY | *4 | REAR UPPER CONTROL ARM ASSEMBLY |
| *5 | REAR STABILIZER BAR | *6 | PLATE WASHER |
| *7 | WIRE HARNESS BRACKET | *8 | CAP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a ball joint lock nut wrench | - | - |

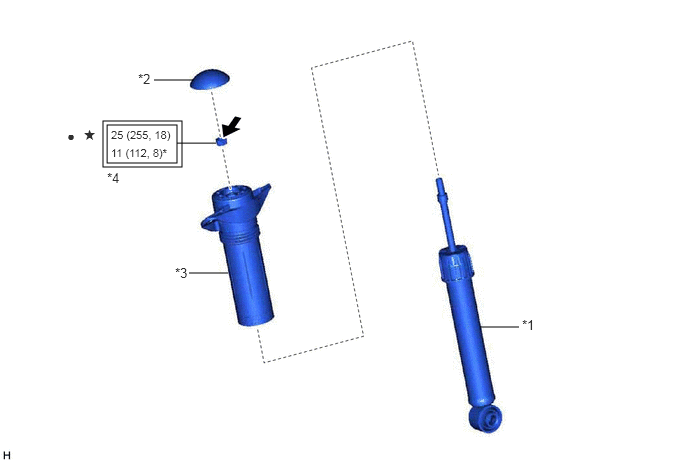

Fig 4: Rear Shock Absorber Replacement Components With Torque Specifications [06/2018 - 08/2020] (4 Of 4)
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR SHOCK ABSORBER CAP |
| *3 | REAR SUSPENSION SUPPORT ASSEMBLY | *4 | REAR SUPPORT TO REAR SHOCK ABSORBER NUT |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with SST | |
| • | Non-reusable part | Adhesive 1324 | |
| * | Precoated part | - | - |
