Installation [08/2020 - 09/2022]: Procedure

1. Temporarily install the rear No. 1 suspension arm assembly to the rear axle carrier sub-assembly and rear suspension member sub-assembly with the 2 bolts and 2 nuts.
   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
   • Insert the bolt with the threaded end facing the rear of the vehicle.

1. Temporarily install the rear No. 2 suspension arm assembly to the rear suspension member sub-assembly with the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and nut.
   NOTE:

   • Insert the rear suspension toe adjust cam sub-assembly from the rear of the vehicle.
   • When tightening the nut, keep the rear suspension toe adjust cam sub-assembly from rotating.

See step  2

See step  3

See step  4

for 2WD: Refer to PROCEDURE - Step 5

for AWD: Refer to PROCEDURE - Step 6

1. Install the rear No. 1 suspension arm assembly with the 2 bolts.

   Torque: 73 N.m (744 kgf/cm, 54 ft.lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

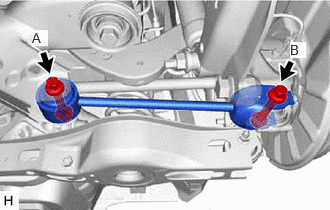

1. Install the rear No. 1 suspension arm assembly with the 2 bolts.

   Bolt A

   Torque: 115 N.m (1173 kgf/cm, 85 ft.lbf)

   Bolt B

   Torque: 73 N.m (744 kgf/cm, 54 ft.lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) with the bolt.

   Torque: 73 N.m (744 kgf/cm, 54 ft.lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. for RH Side:

   Refer to PROCEDURE - Step 8

1. for LH Side:

   Refer to PROCEDURE - Step 9

1. for LH Side:

   Refer to INSTALLATION [08/2020 - ]

Refer to PROCEDURE - Step 1

1. Lower the vehicle to the ground.
2. Bounce the vehicle up and down at the corners to stabilize the rear suspension.
3. Align the matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

4. Fully tighten the nut.

   Torque: 100 N.m (1020 kgf/cm, 74 ft.lbf)

   NOTE:

   • Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
   • Make sure that the vehicle is unloaded when fully tightening the nut.

Refer to ADJUSTMENT [08/2020 - 08/2021] , or refer to ADJUSTMENT [08/2021 - ]
