Removal [06/2018 - 08/2020]: Procedure

  1. REMOVE REAR NO. 1 FLOOR BOARD (for 2GR-FKS)
    1. Remove the 4 clips (A).
      GTY794516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 grommets (B) and 2 clips (C) to remove the rear No. 1 floor board.
  2. REMOVE REAR FLOOR SIDE MEMBER COVER (for A25A-FXS)
    1. Remove the bolt and 8 clips (A).
      GTY800243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 grommets (B) and 2 clips (C) to remove the rear floor side member cover.
  3. REMOVE SUSPENSION TOWER DAMPER

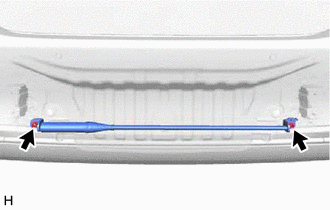

    1. Remove the 2 nuts and the suspension tower damper from the vehicle.
      GTY784878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not extend or compress the damper.
